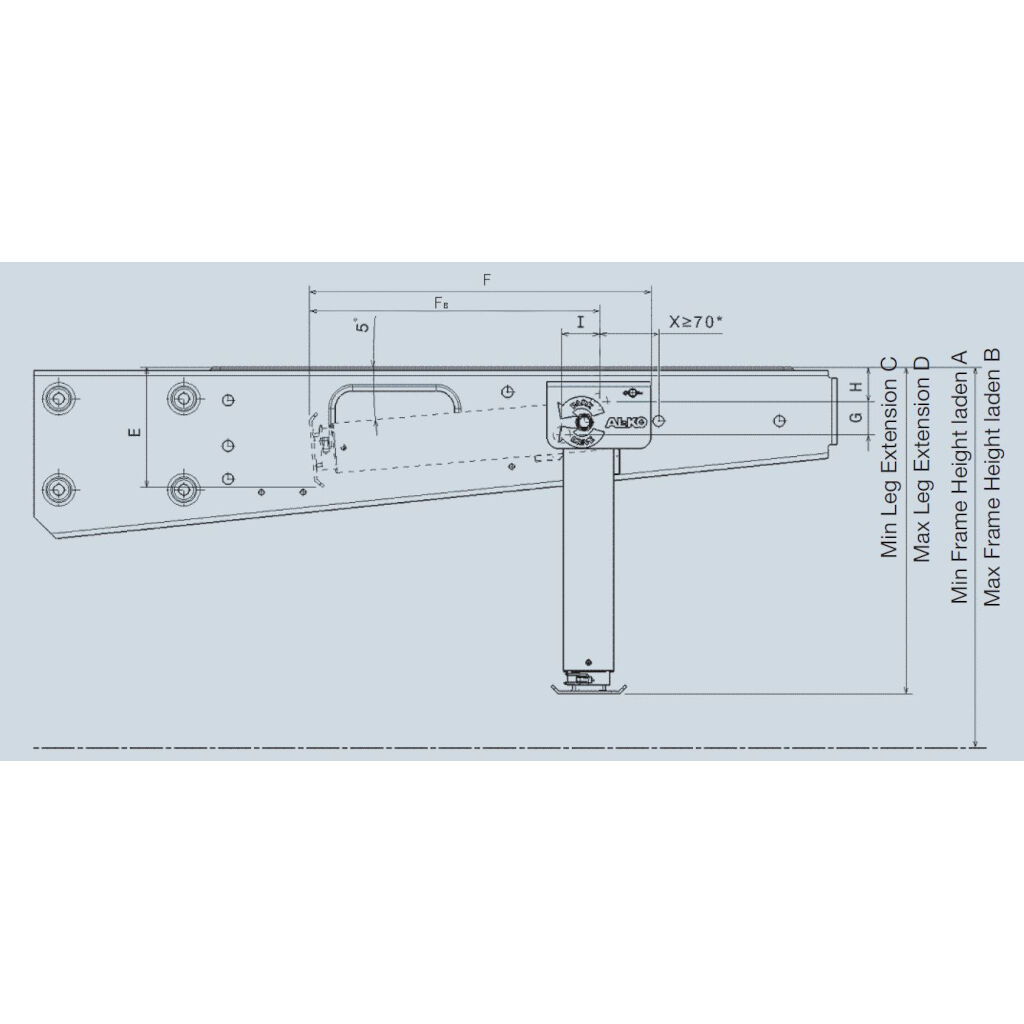

  • Dimensions for mounting
  • AL-KO Motorhome Support Legs ClickFix
  • Dimensions for selection of height
  • Stabilizes the motorhome quickly and conveniently.
  • The support legs are easy to crank out.
  • The support legs work on all surfaces.
  • Two support legs per set
  • Dimensions for mounting

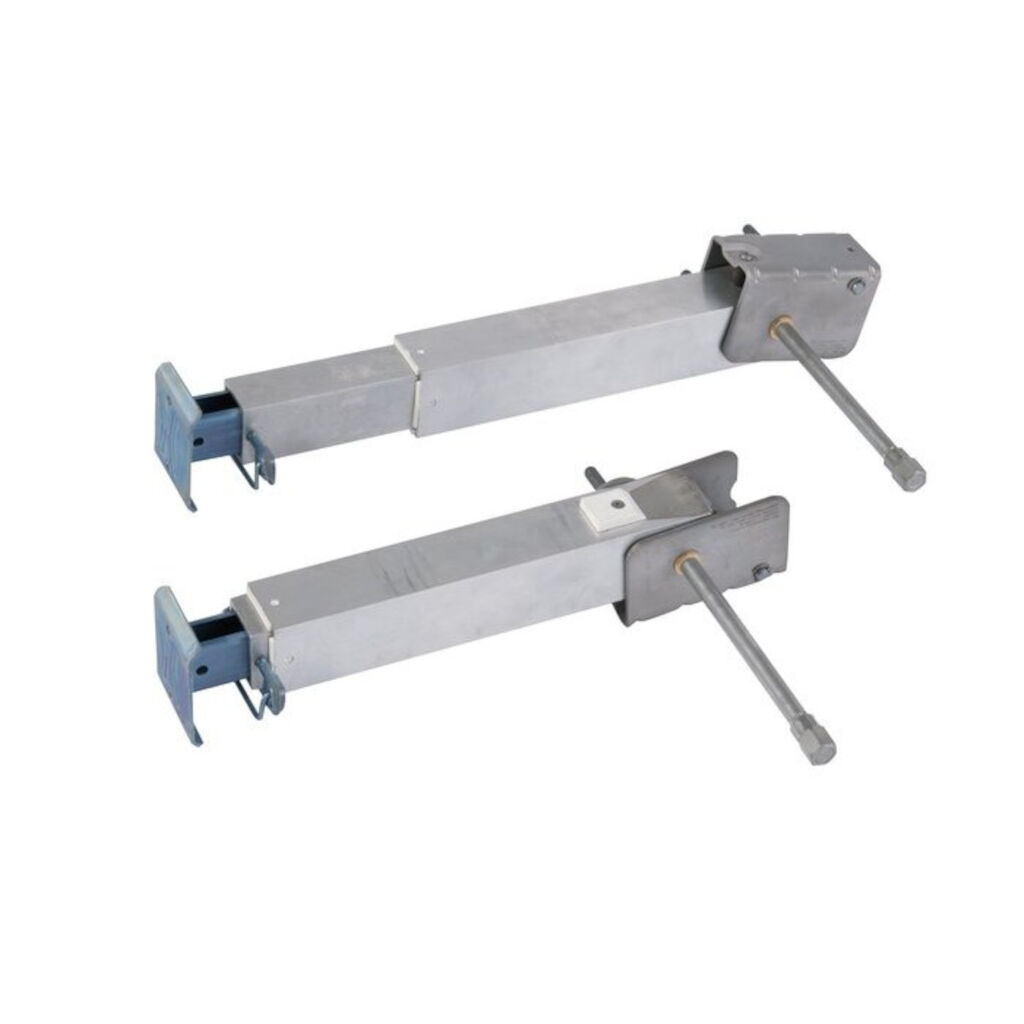

AL-KO Motorhome Support Legs ClickFix - Outlet

Item ID: HF1239363R

Stable and lightweight support legs for motorhomes that work on all surfaces. With AL-KO ClickFix support legs, you avoid rocking and potential noise in the suspension and parking brake when someone walks in the motorhome or turns in bed. Fits all AL-KO AMC chassis and is easy to install on most other chassis as well (requires drilling holes for mounting).

First, measure the frame height with loaded car A (measurement between ground level and top of frame). Choose a support leg that fits that height.



NOTE: Customer return, test mounted but not used.

READ MORE
Available
Order item - Normal delivery time 8-14 days
Only a few left (1 items)
€331
Reg. €389.95. You save €58.95 (15%)

Height (A in picture)

Order item - Normal delivery time 8-14 days
Product reminder

Enter your e-mail address below and we will notify you when the product is available! Your e-mail address will be stored up to 180 days.

  Add to Favorites

Number of legs: 2 pcs
Capacity: Static 1000 kg, Dynamic 500 kg
Weight: 7.2 - 8.9 kg



Safe and Lightweight Motorhome Support Legs

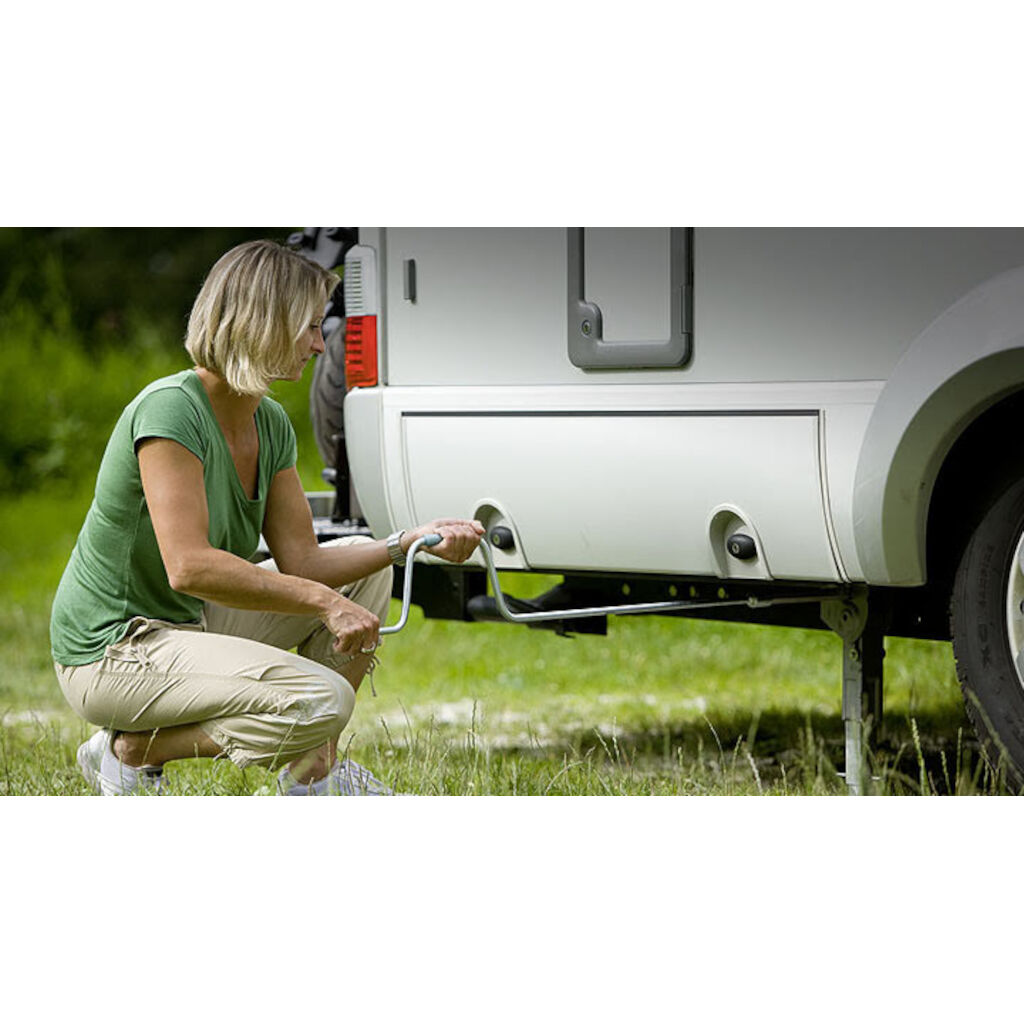

Support legs for mounting on the rear of motorhomes with an AL-KO AMC chassis. They can also be mounted on other frames, but this requires drilling holes and possibly reinforcement. The support legs are manually cranked up and down (Note: Crank is not included in the delivery). In the end position, the crank turns upwards and automatically locks in place, ensuring that the legs do not accidentally fold down during travel. The ClickFix support legs also feature an integrated safety mechanism that allows departure even if the support legs are extended, preventing damage to both the support legs and the motorhome if they are forgotten.

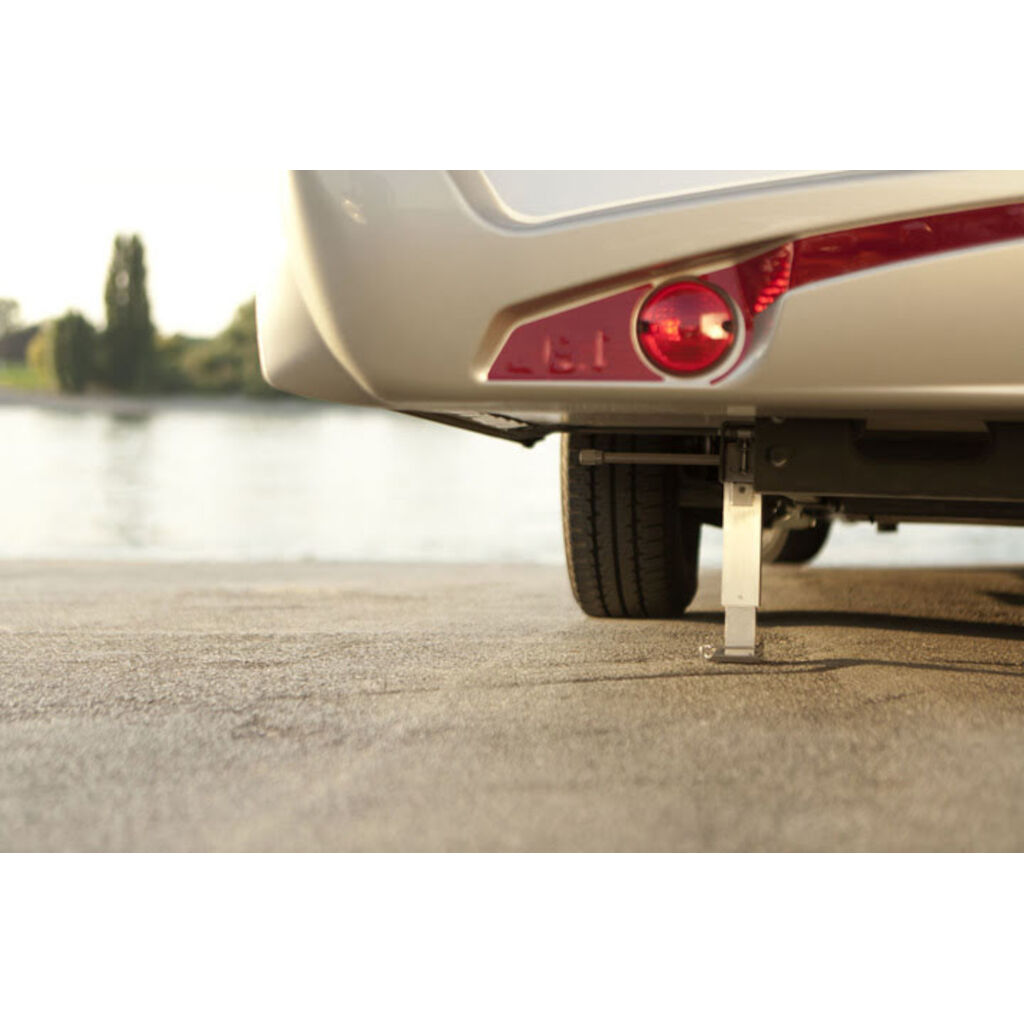

  • Provides solid support on grass, gravel, or asphalt!

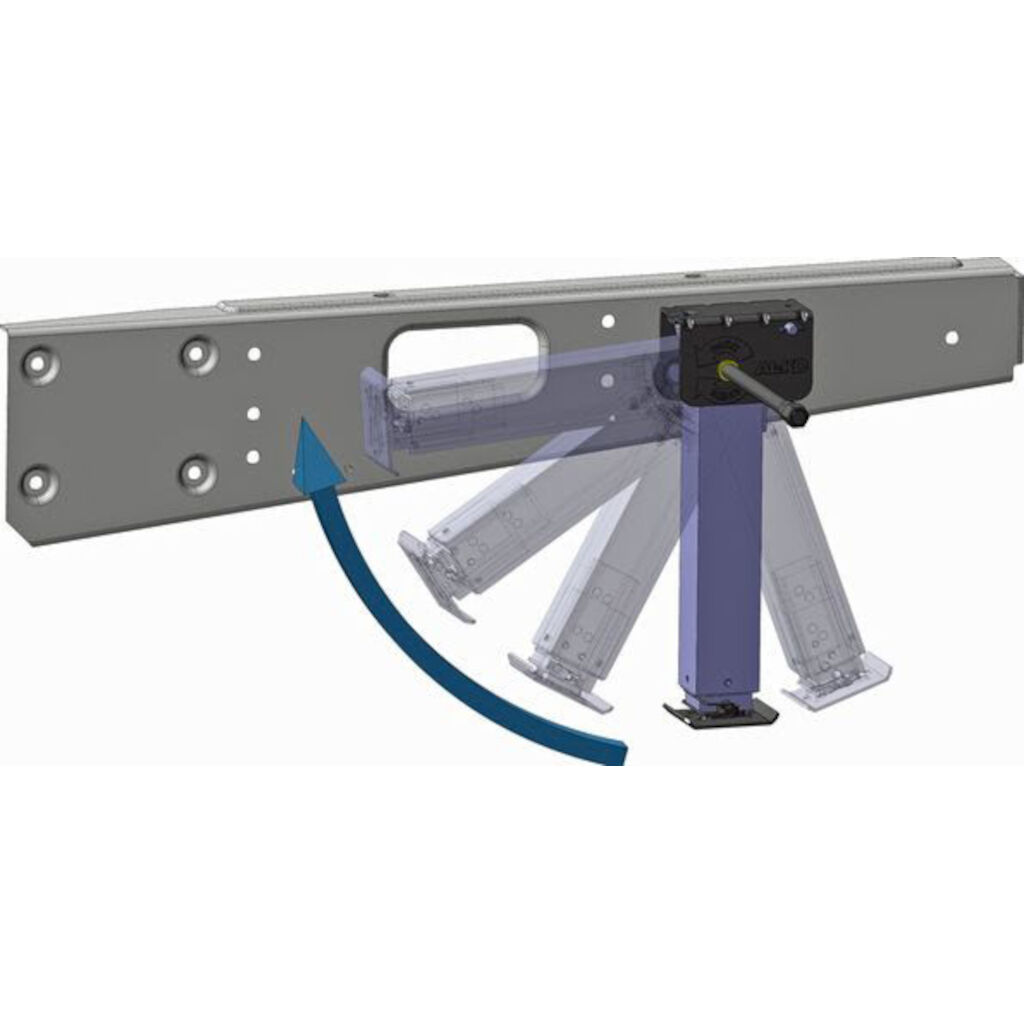

  • Convenient and fast – after just half a turn, the legs drop vertically and start extending.
  • Safety mechanism – the legs automatically fold up if forgotten during departure.
  • Easy installation on AL-KO frames or frame extensions.
  • Lightweight.
  • Load capacity: static 1000 kg / dynamic 500 kg.
  • Note: The support legs must not be used as a jack.
  • Note: Crank not included.

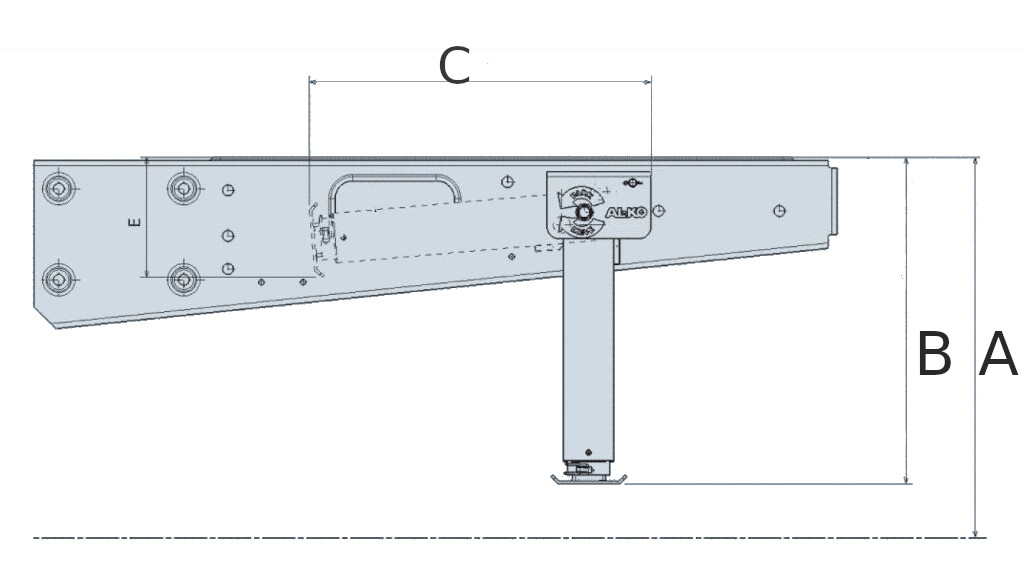

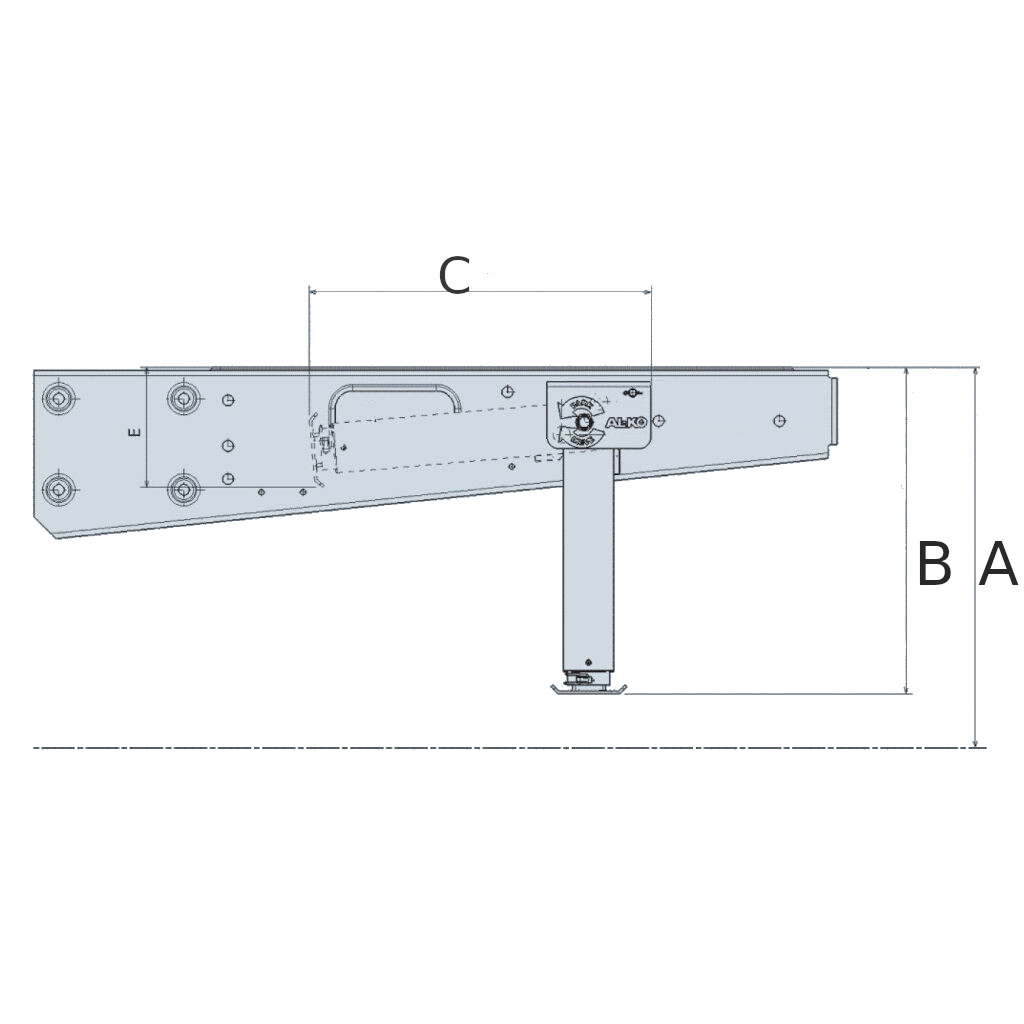

Dimensions


A - Frame height range
loaded vehicle (Model name)		B - Adjustment height  C - Length  Weight
280-450 mm297-464 mm382 mm7.2 kg
380-640 mm397-654 mm481 mm7.3 kg
430-730 mm446-744 mm531 mm8.4 kg




Installation

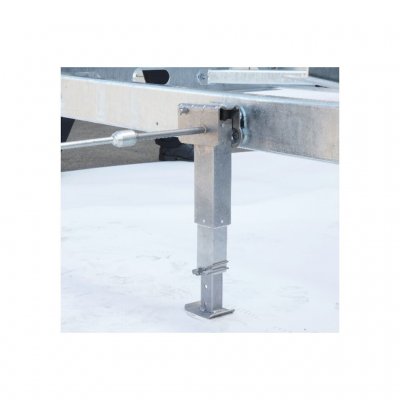

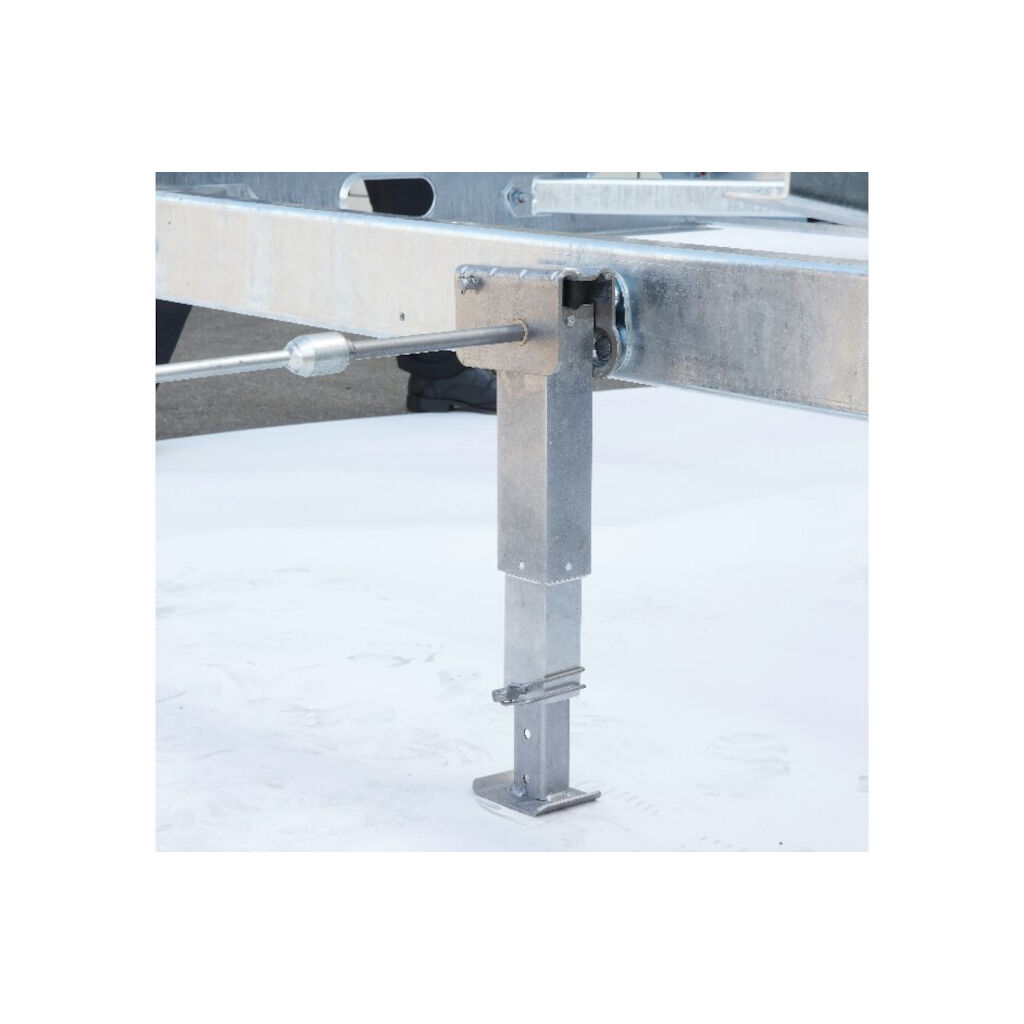

The support legs fit all AL-KO/AMC chassis and frame extensions manufactured from August 1995 onwards, which are equipped with pre-drilled holes. This makes installation very easy. Two screws per leg with a hole pattern of c/c 60 mm. On some motorhomes, it may be helpful to drill a hole in the skirt for easier access to the support leg crank.


BrandAL-KO
