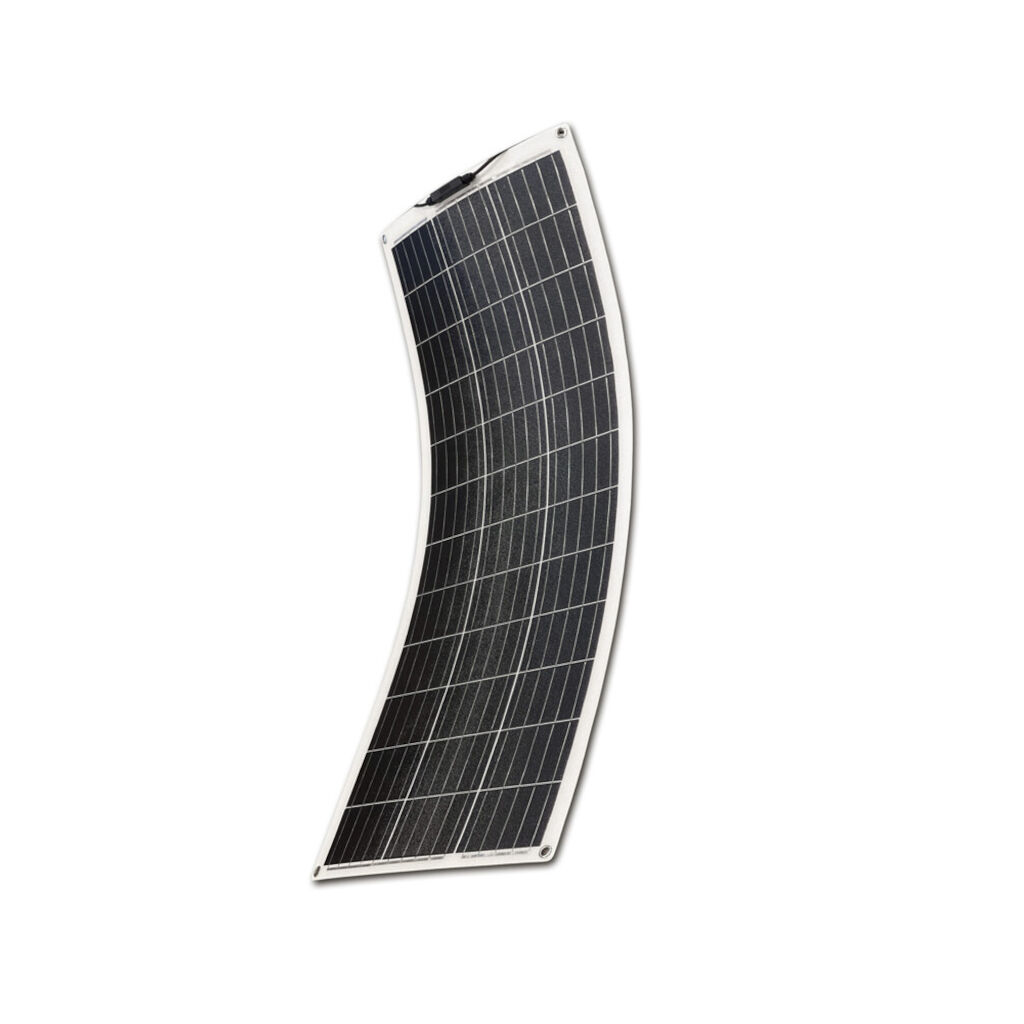

LTC Solar Panel 100W Flexible
A flexible 100W solar panel with a smaller size for caravans and motorhomes. Ideal for smaller motorhomes or caravans, or where, for instance, roof hatches or vents make it difficult to install one. 30% higher efficiency compared to conventional solar panels.
READ MOREWeight: 2 kg (excluding cables)
Size: 1050 x 540 x 3mm
Max charging current: 5.37 amp
Compact Solar Panel for Caravan and Motorhome
Optimal ETFE Solar Panels for Caravan and Motorhome Flexible solar panel from LTC, made with the newer ETFE technology to maximize solar energy absorption with minimal reflection. With an impressive efficiency that is 30% higher than conventional panels, ETFE offers a powerful and reliable energy source for your caravan or motorhome.
Self-cleaning with Long Lifespan
The chemical properties of the ETFE material make it self-cleaning and maintain transparency throughout its life cycle, resulting in an impressive lifespan of up to 15 years.
Eco-Friendly Energy
The material is 100% recyclable. Even its production process is more environmentally friendly, as it does not require the use of chemical solvents or petroleum products.
Installation
The panel is glued directly to the roof (glue not included). A 2m cable is attached to the panel.
Features
- Lightweight (2 kg)
- No glass or frame
- Thin (3mm)
- Suitable for smaller motorhome and caravan roofs
Specifications
| Rated Maximum Power (Pmax) | 100W |
| Tolerance | ±3% |
| Voltage at Pmax (Vmp) | 18.6V |
| Current at Pmax (Imp) | 5.37A |
| Open-Circuit Voltage (Voc) | 21.9V |
| Short-Circuit Current (Isc) | 5.91A |
| Nominal Operator Cell Temp (NOCT) | 50C |
| Maximum System Voltage | 1000VCD |
| Maximum Series Fuse Rating | 15A |
| Operating Temperature | -40C to +86C |
| Application Class | A |
| Size | 1050 x 540 x 3mm |
| Weight | 2KG (panel only) |
| Mounting rail and cable entry not included | NO |
| Cable length | 1 x 2 M |
| Brand | LTC |
| Size | 1050 x 540 x 3mm |
| Effect | Charging current max power: 5.37 amp |
| Weight | 2 kg |
| Other specifications | Cable thickness: 4 mm Cable length: 2m |
Accessories for this item
LTC Solar Controller MPPT 15AMP Display
Maximum power solar panel: 200W
Battery types: AGM, Lead, Gel
Maximum voltage: 75V
Maximum charging current: 15A
Dekalin Glue for Solar Panel MS-5
Set for attaching solar panel
