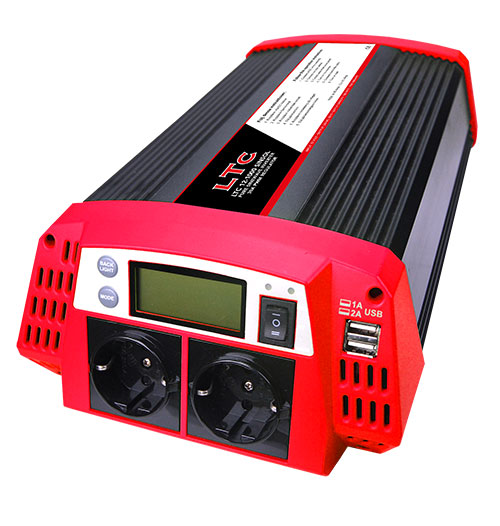

LTC Inverter 12V-230V / 1000W Sinsol Sinus

Weight: 3.8 kg
Size: 38 x 20 x 10 cm
Protection class: IP20



An inverter for your solar cell solution

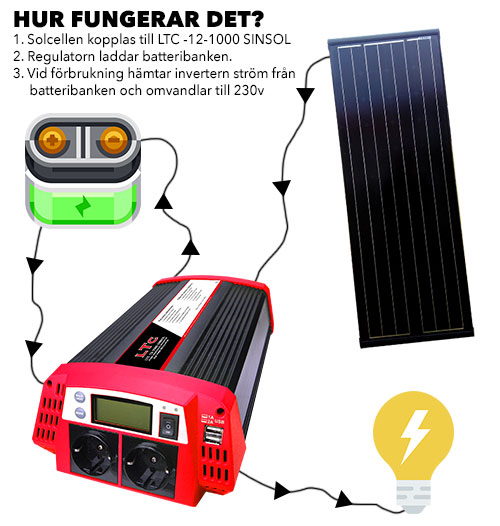

Connect the solar cell to the inverter and charge the battery bank via the inverter at sunshine. During power consumption, the current will go via the inverter and convert it to 230V with a pure sine wave that can basically handle all loads. If you have a modified sine wave, e.g. a diesel generator, some electrical devices may break down during use or malfunction. With this inverter you avoid this worry while increasing the efficiency, i.e. you get more out of your batteries with clean sine.

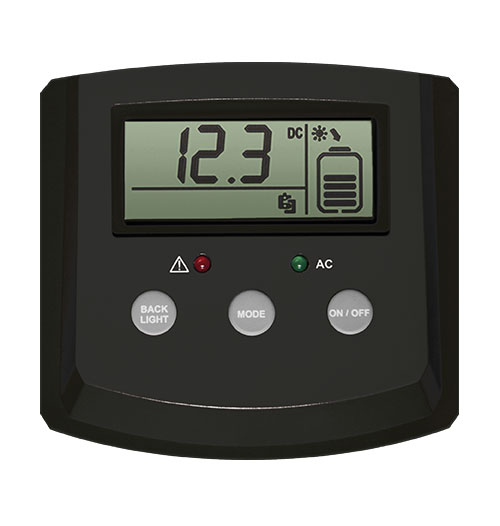

With the included remote control, you have control of your battery and can see via the display On / off charging current, voltage, power consumption, output power and battery level.

• Inputs: DC and PV
• Output: AC and USB
• Temperature range: 0 - +40
• Cooling: Air Insulation class: Class 1
• Protection class: IP20

DC-input

• Battery voltage: 7 ~ 15.3 VDC
• Battery capacity: > 65 Ah
• Maximum input current: <100 A
• Standby current: <0.75 A

Solar cell input

• Voltage: 16 ~ 45 VDC
• Maximum PV power: <500W @ maximum PWM current ≤30A

AC-output

• Voltage: 230 VAC
• Frequency: 50 Hz
• Power: 1000 W
• Peak power: 1100W @ 20min
• Overvoltage power: 2000W @ 1 sec
• Conversion efficiency:> 86%
