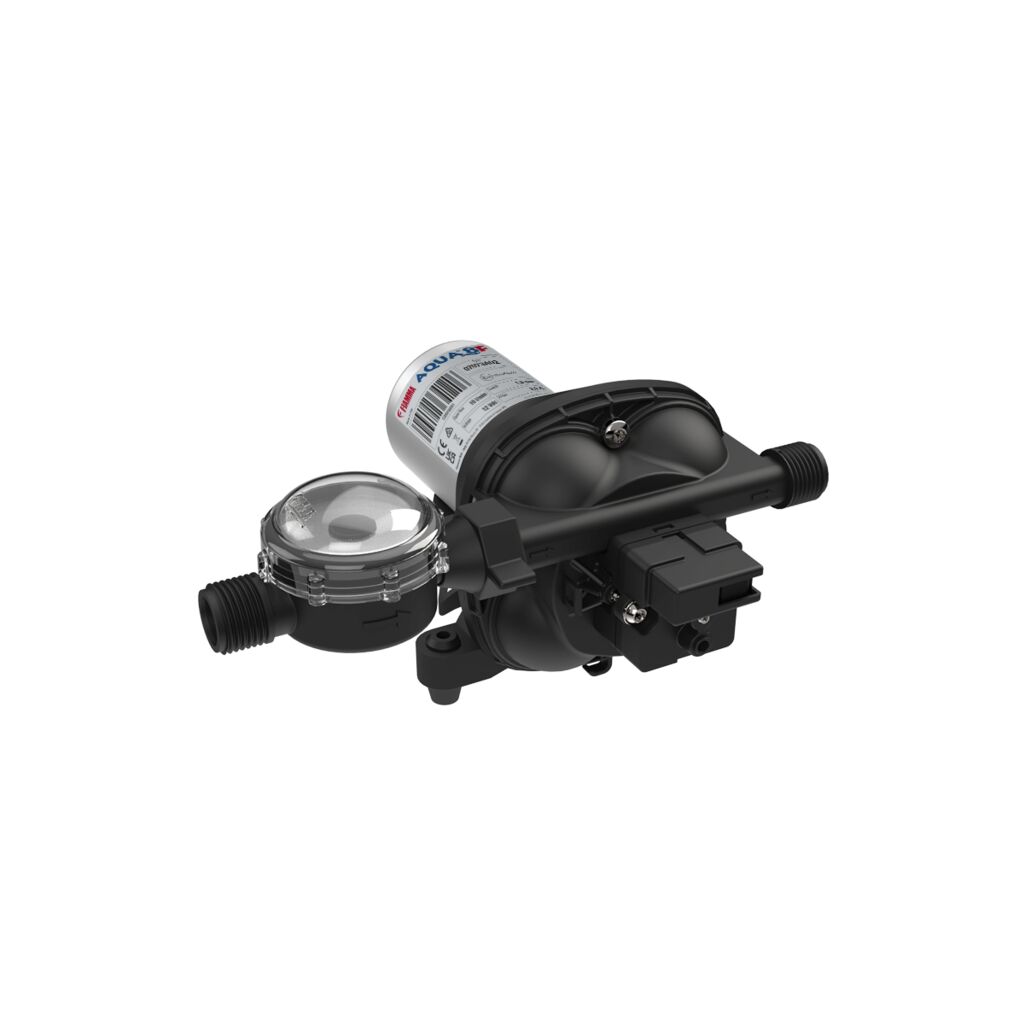

Fiamma Power Pump Aqua 8F Pressure Water Pump

Item ID: FI07073B02

Fiamma's Power Pump is a reliable, vibration-resistant and quiet pressure water pump designed for use in caravans and motorhomes with pressurized water systems. Four chambers provide a strong flow despite the size. The pump automatically activates if the pressure in the piping system drops, for example when a water tap is opened. Can be installed in any position without affecting functionality. Can also be used to replace older Fiamma pumps.

Voltage: 12V/
Flow rate: 7 l/min (1.5 bar), 10 l/min (2.1 bar), 13 l/min (2.2 bar)
Connection: 1/2"
Number of taps in motorhome/caravan: 1.4 bar: 3, 1.9 bar: 4, 2.1 bar: 4, 3.1 bar: 5

Pressure Water Pump for Caravans and Motorhomes

Pressure pump for drinking water in caravans, motorhomes and holiday cabins. The pump features four chambers for higher pressure and a one-piece diaphragm to reduce the risk of leaks. It is designed for pressurized systems and activates when a tap is opened and pressure drops. The pump delivers smooth and quiet operation, improving comfort in both kitchen and bathroom.

Fiamma Power Pump 8F Pressure Pump

Suitable as a replacement for most 12V pressure water pumps
Four independent pump chambers ensure smooth and quiet operation and allow for suction up to 5 m
Vibration-damping mount for low noise levels
Adjustable pressure switch
The included filter is compact and can be installed in the most convenient location based on available space
The stainless steel filter is washable and has a long service life
Installation: Easy to install and requires minimal maintenance, making it ideal for both experienced and new caravan owners.

Specifications

Model	12 V \| 7 l/min \| 1.9 bar	12 V \| 10 l/min \| 2.1 bar	12 V \| 13 l/min \| 3.1 bar
Supplier article no.	07073B02-	07073A02-	07073-02-
Voltage: 12 V	12 V	12 V	12 V
Flow rate: 7.0 l/min	7 l/min	10 l/min	13 l/min
Shut-off pressure	1.5 bar	2.1 bar	2.2 bar
Power consumption (W):	16.8 W	36 W	28.8 W
Current:	1.4 A	2.7 A	2.4 A
Suction depth:	5	5 m	5 m
Taps:	Approx. 3	Approx. 4	Approx. 5
Weight: 1.5 kg	1.3 kg	1.3 kg	2.2 kg

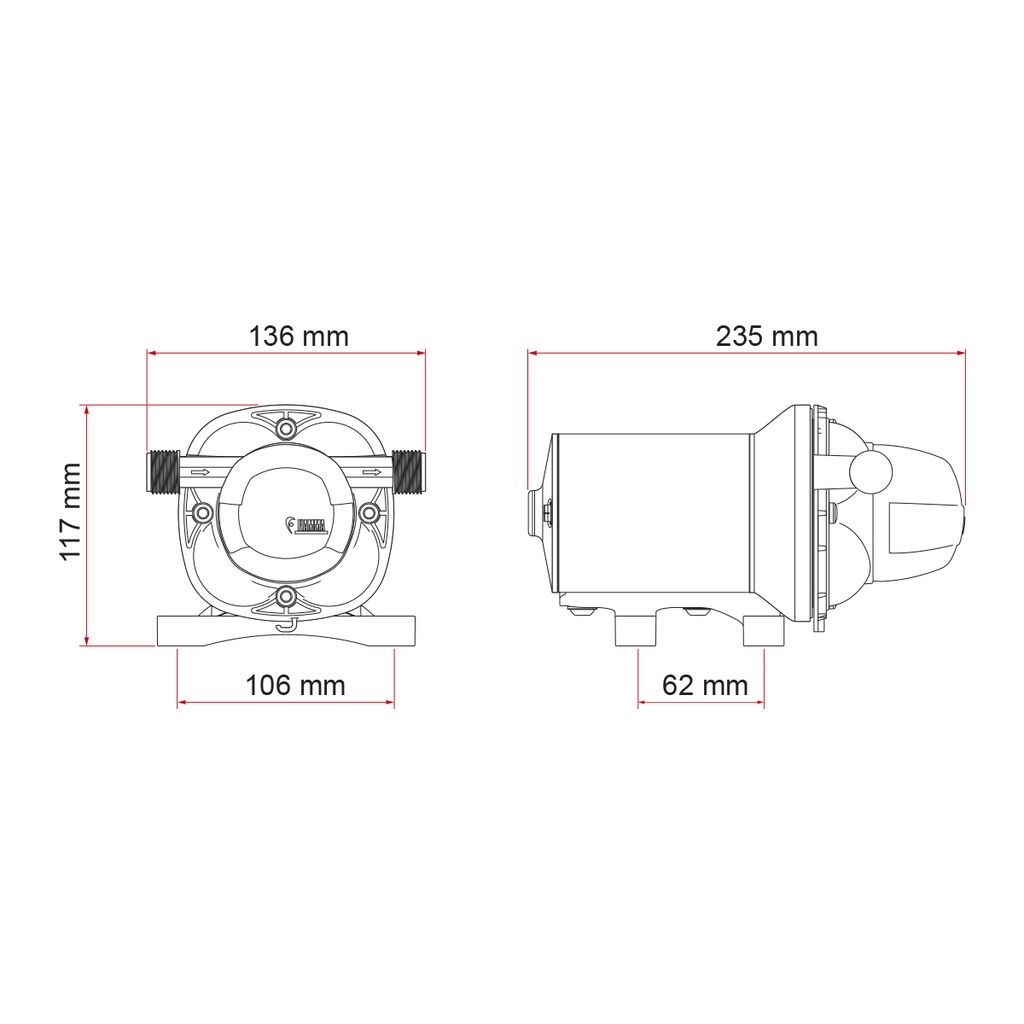

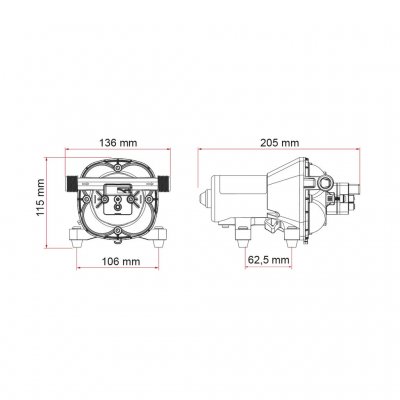

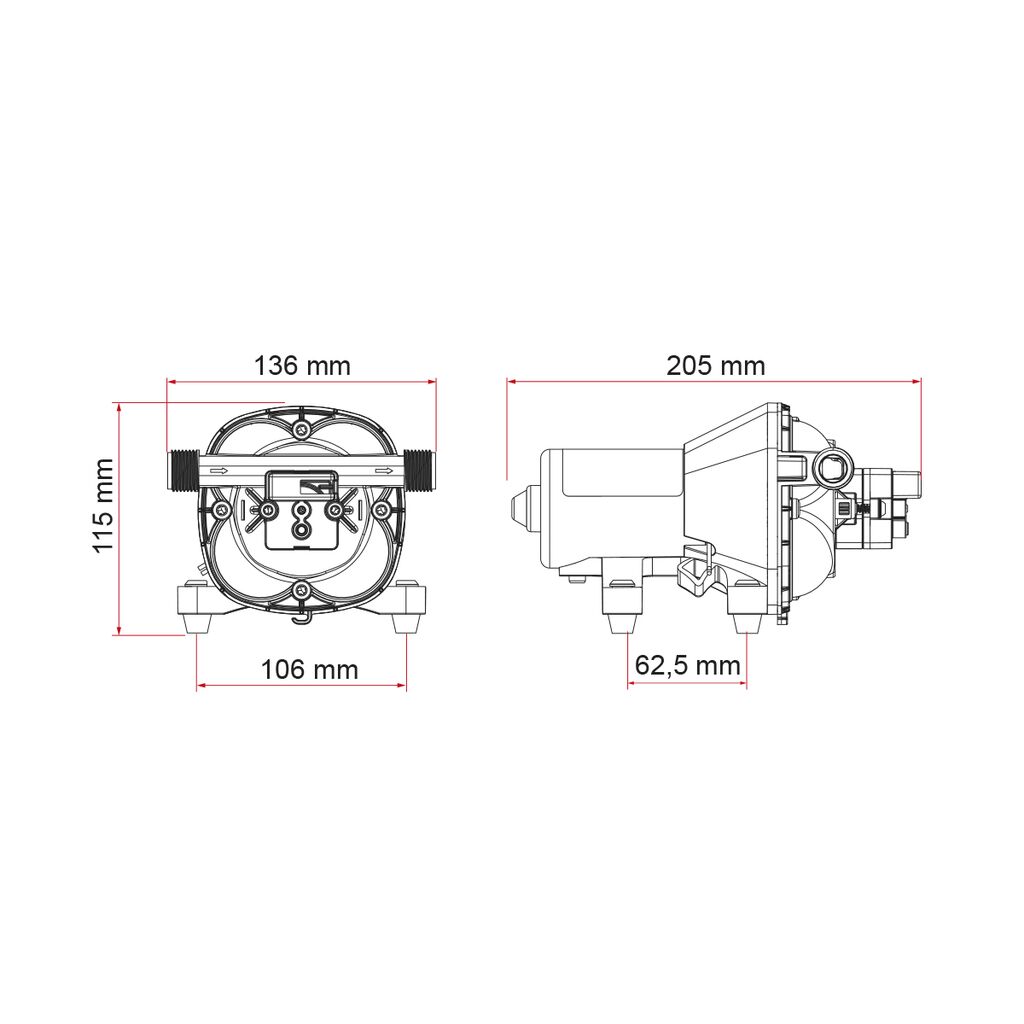

Dimensions:	136x115x205 mm	136x115x205 mm	136x117x235 mm

Brand	Fiamma
Dimensions	136x115x205 mm
Capacity	See table in product description
Connection	12 V
Included in the pack	Pump, Filter
