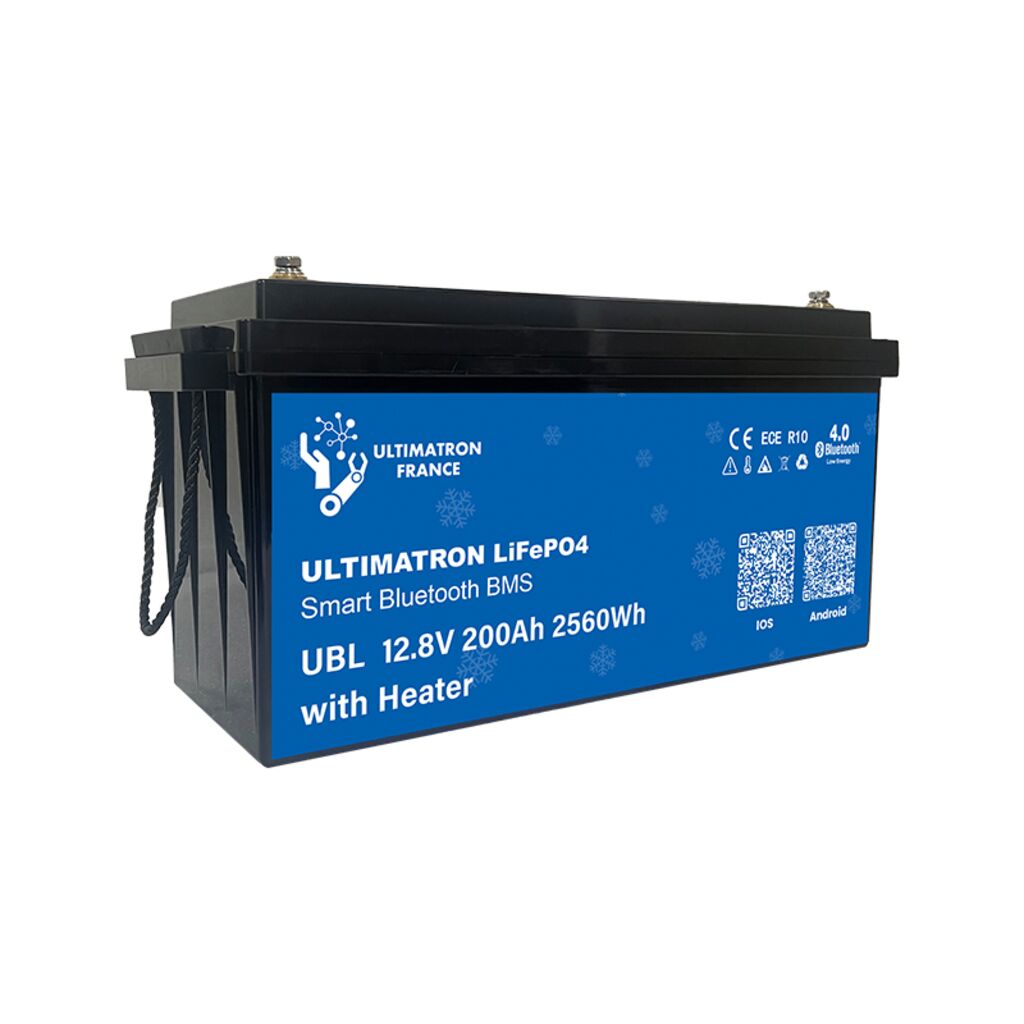

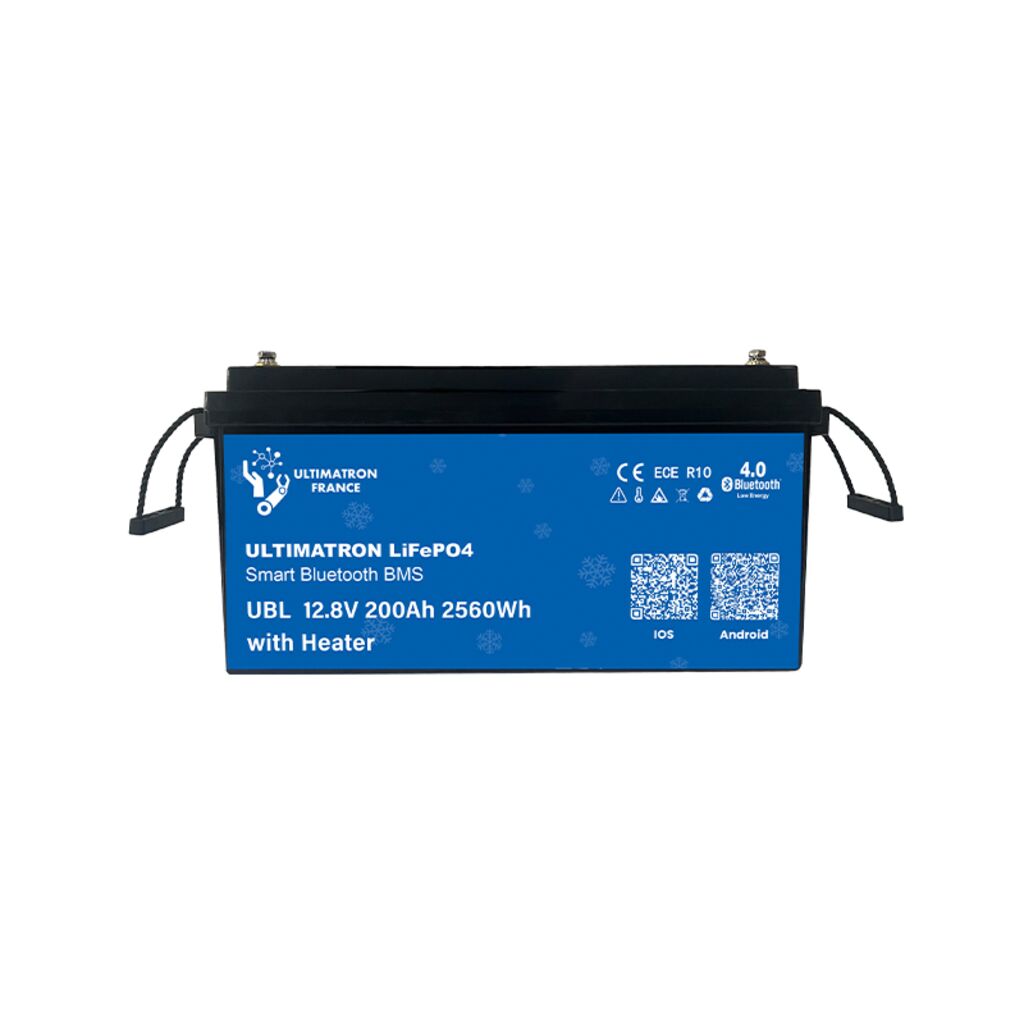

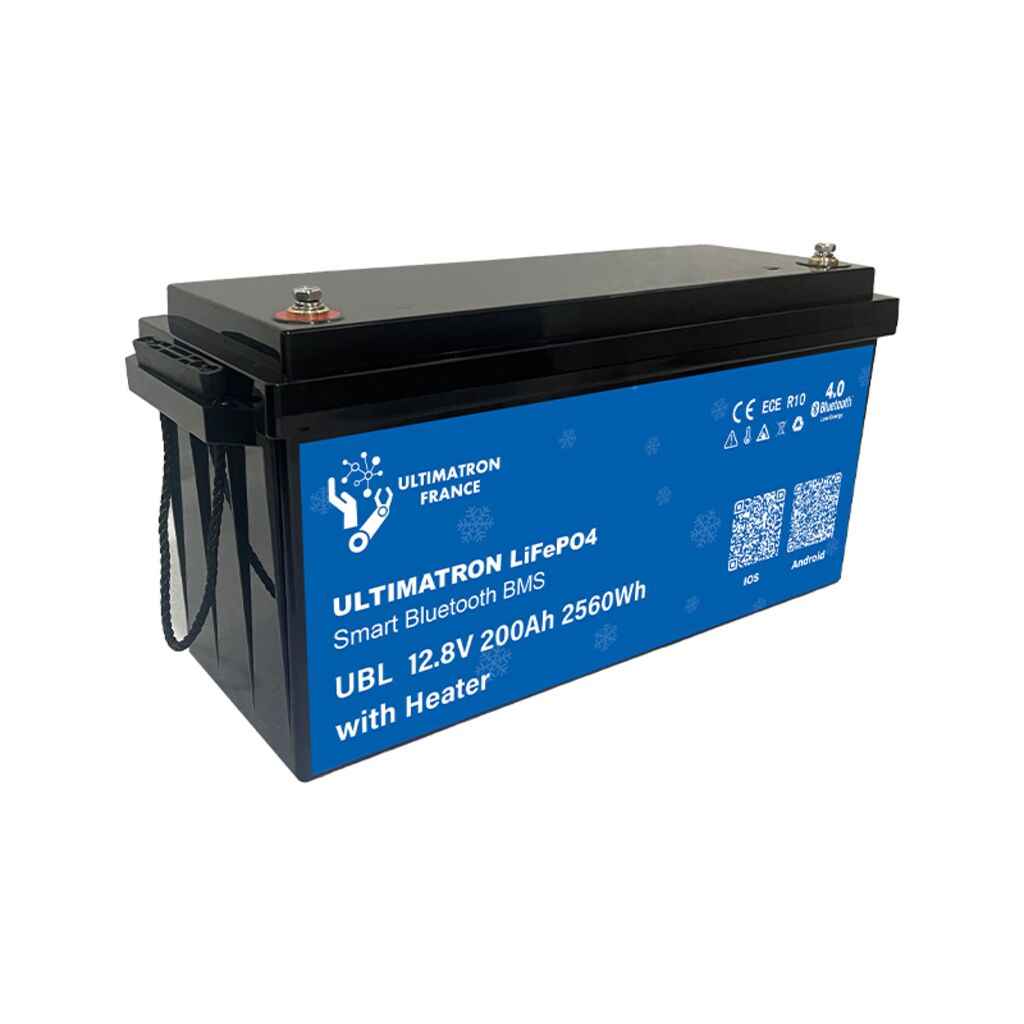

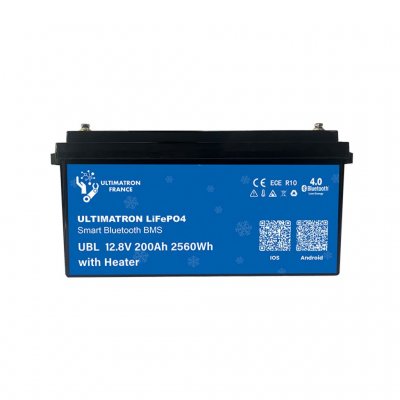

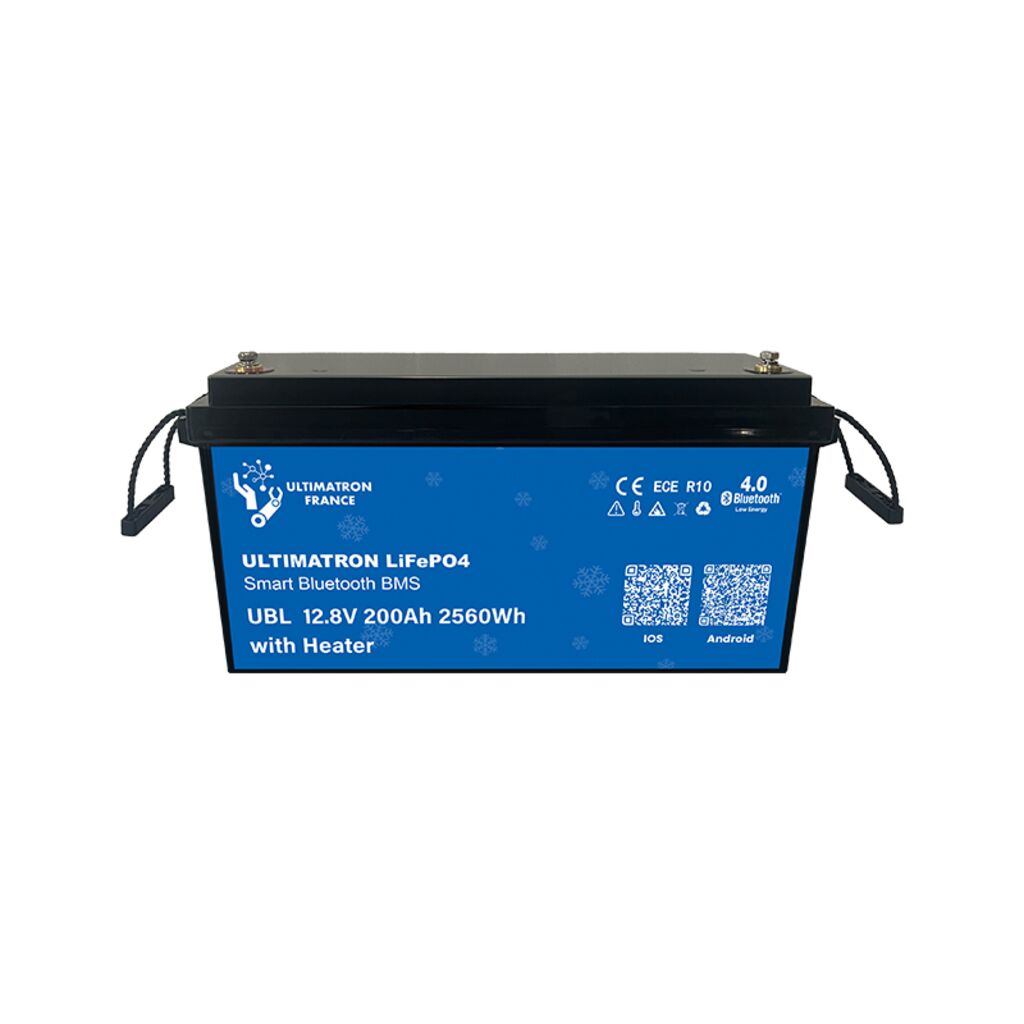

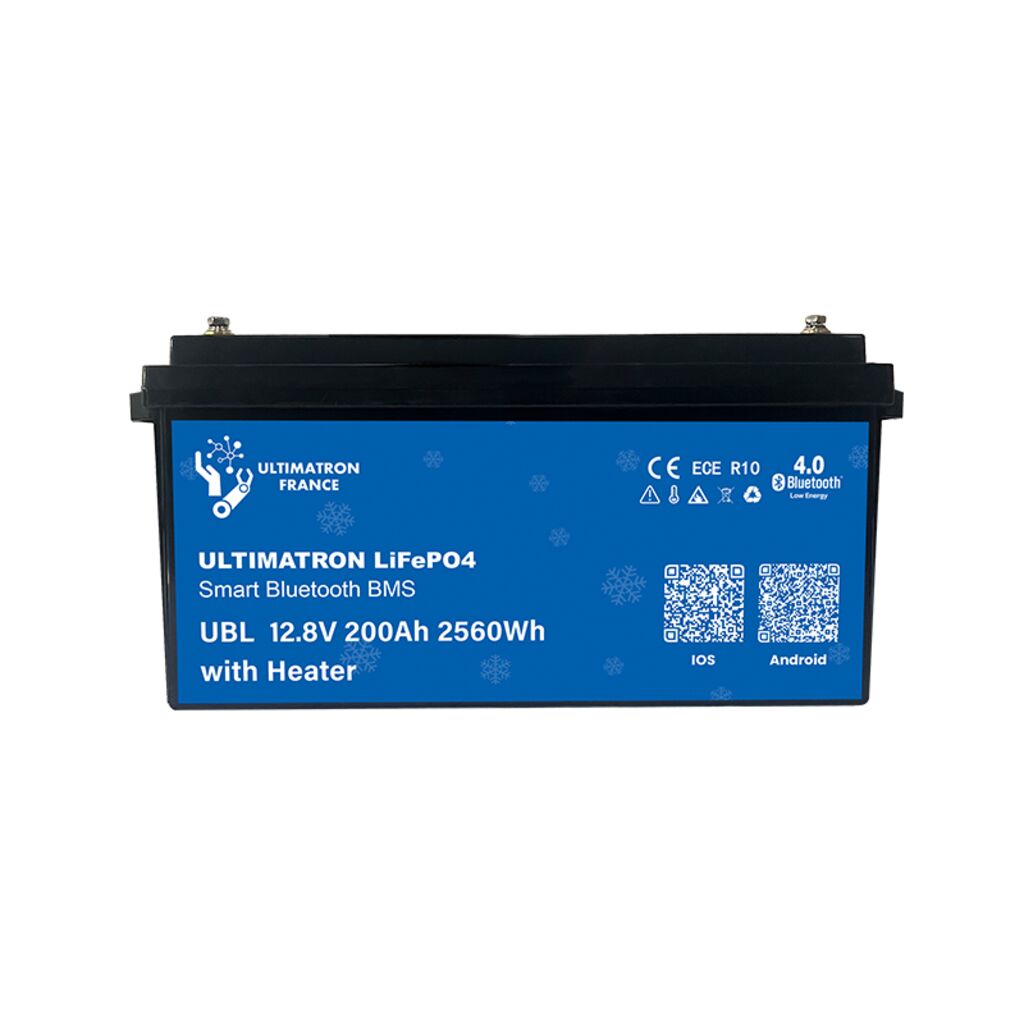

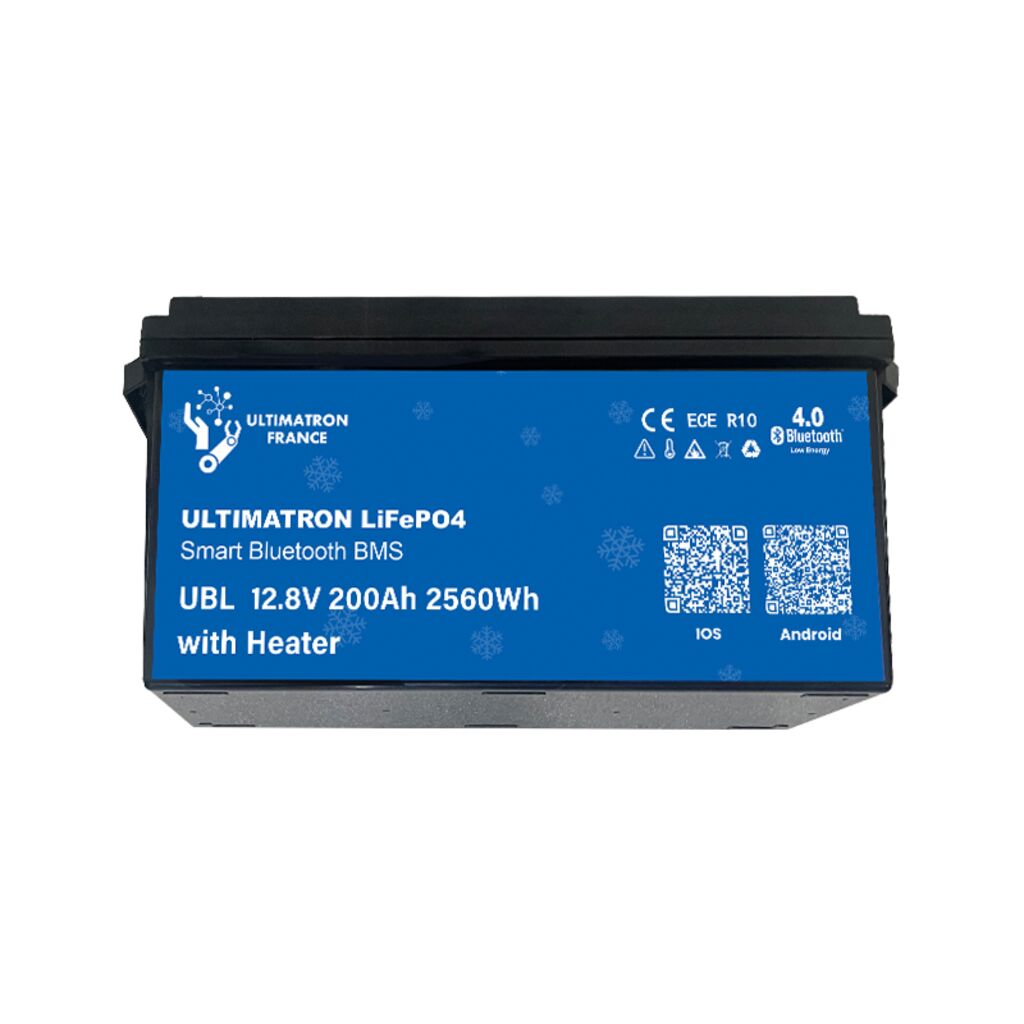

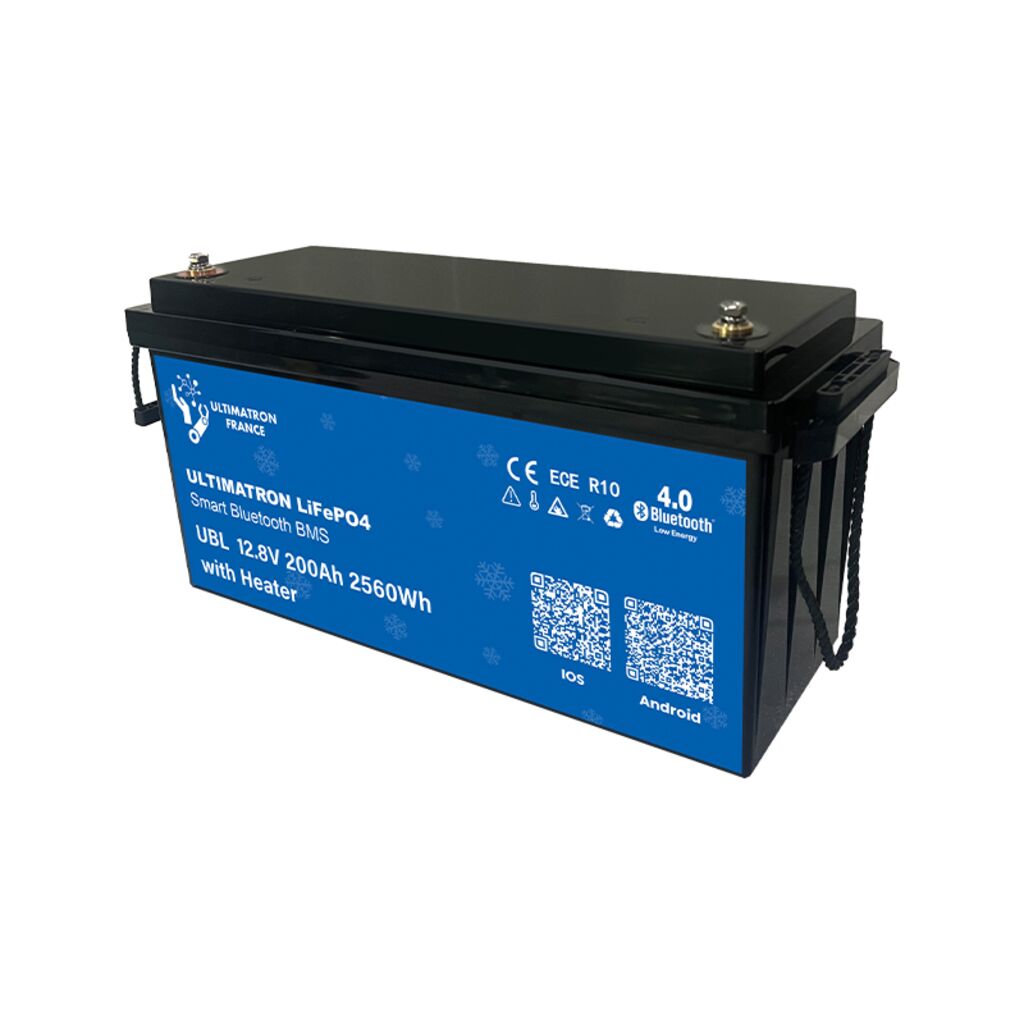

Ultimatron Heat Pro 200Ah 12V battery for Caravan & Motorhome
Lithium battery with a capacity of 200Ah for caravan, motorhome or boat with a built-in heating system, allowing it to be charged even during winter. With a continuous discharge capacity of 200A, it is also suitable for inverters up to 2000W. Ultimatron Heat 200Ah features a BMS (battery management system) that protects the battery against incorrect charging, high temperatures and overload. Thanks to its BMS, you can replace your lead-acid battery (not starter batteries) directly without making any adjustments to the electrical system. The battery can also be connected in parallel with up to 4 batteries for increased capacity.
READ MORECapacity: 200 Ah (2560 Wh)
Output capacity: 12V/200 A (approx. 2500W)
Nominal voltage: 12.8V
Weight: 21.3 kg
Lifespan: approx. 15 years (6000 cycles at 80%)
200Ah Lithium Battery for Caravan and Motorhome – Operates in Sub-zero Temperatures
Battery with high capacity, low weight, compact size and significantly longer lifespan than a traditional lead-acid battery. The advantage of a lithium battery is that it charges much faster than a conventional battery, and you can use almost the entire battery capacity compared to around 50% from a traditional battery. This means that this battery corresponds to approximately 300Ah in traditional batteries, at a significantly lower weight and smaller size.
A unique feature of this LiFePO4 battery from Ultimatron is its built-in heating system, which heats the battery before charging when needed. This makes it especially suitable for those who use their caravan/motorhome even during the colder parts of the year. The battery has an integrated BMS (Battery Management System) for maximum safety and lifespan. Thanks to the built-in electronics, the battery can be charged via a standard constant voltage charger, solar charge controller, etc.
Bluetooth

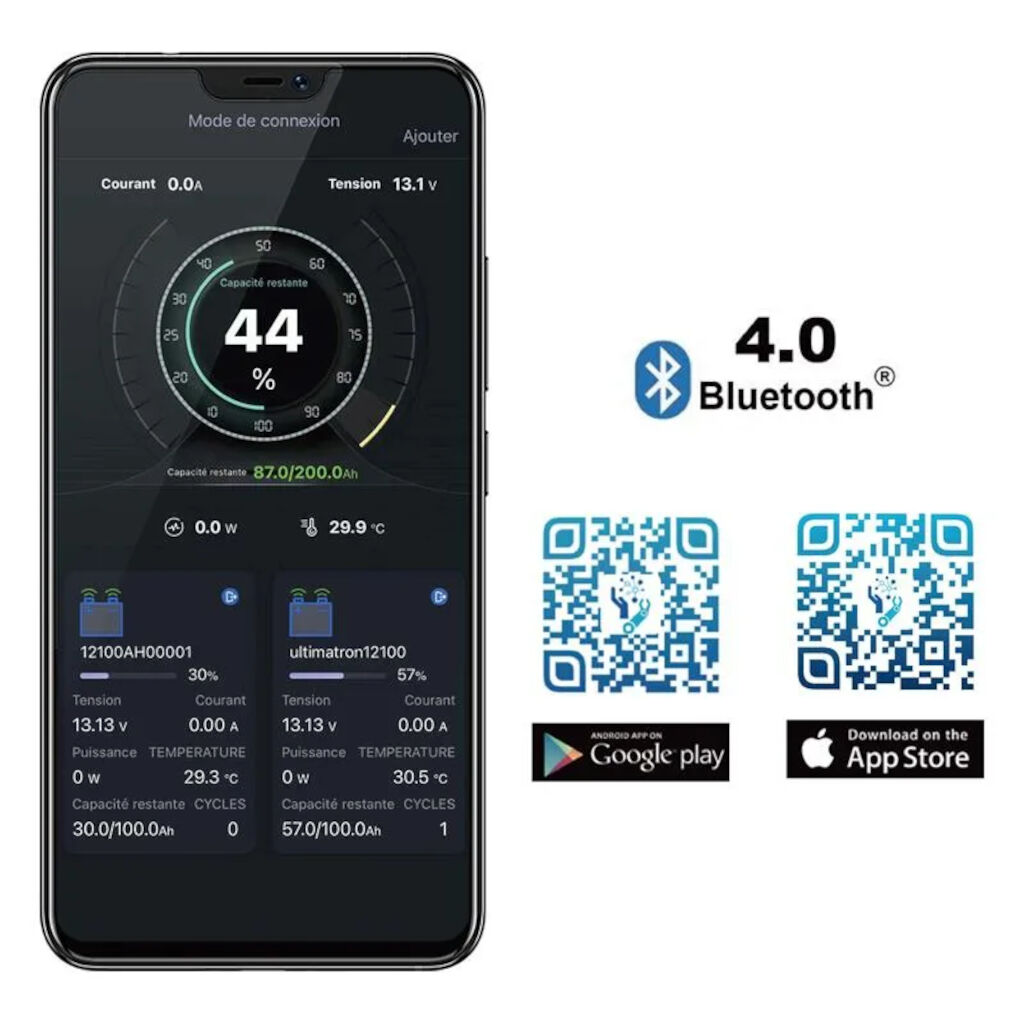

The BMS also has a Bluetooth connection, allowing you to connect it to your phone to monitor the battery status. There you can see:
- State of charge
- Voltage
- Available capacity
- Number of charge cycles
- Temperature and battery health status
Ultimatron Heat 200Ah Lithium Battery for Caravan/Motorhome
- Drop-in replacement – no external components required
- Built-in heating system for charging even in sub-zero temperatures
- Bluetooth connection – connect to app to read battery status
- Designed to replace a traditional battery (equivalent voltage and terminal connections)
- Long lifespan – 15 years under normal use (5–10 times longer than a traditional lead-acid battery)
- Low weight (save approx. 60 kg)
- High capacity – actual usable capacity equivalent to a 300 Ah lead-acid battery
- Environmentally friendly
- Built-in protection via BMS (Battery Management System)
- The system automatically balances the cells, extending battery lifespan (often what distinguishes high-quality from low-quality lithium batteries).
- 3–10 times faster charging
Specification Ultimatron 200Ah Lithium Battery
| Nominal Voltage: | 12.8V |
| Nominal capacity : | 200 Ah/2560 Wh |

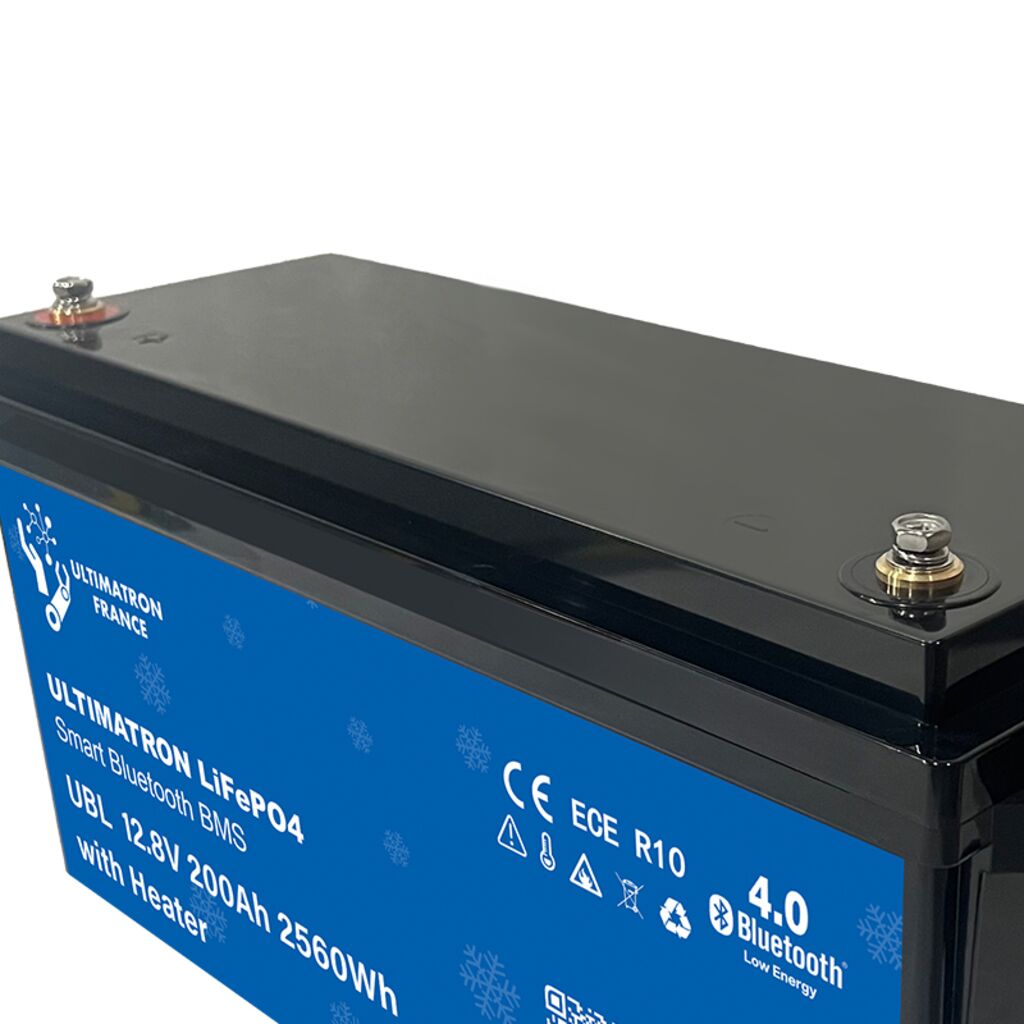

| Connection: | DIN (T11) 17mm neg 19mm pos/M8 |
| Output capacity: | 12V/200Ah |
| Battery type: | Lithium Iron Phosphate (LiFePO4) |
| Weight: | 21.6 kg |
| Dimensions (WxDxH): | 50.2 x 18.6 x 24.6 cm |
| Battery Management System (BMS): | Integrated |
| Number of cycles (80% DoD): | >6000 |
| Warranty: | Full warranty 2 years or up to 2000 cycles/5-year limited warranty (up to 2200 cycles) |
| Operating temperature: | -20℃ to 55℃ @60±25% relative humidity (Charging from -35℃) |
| Discharge efficiency: | Min 98% @0.2C to 10.0V |
| Max discharge current: | 200A (Current spikes: 450A in 200–500 milliseconds) |
| Recommended charger: | 60A (Max 100A) |
| Recommended charging voltage: | 14.6V +/- 0.1V |
| Type of charger: | Traditional, alt. lithium |
| Charging time: | Depends on charger size |
| Self-discharge per month: | approx. 3% |
| Heating function: | Can charge down to -35°C, min 7A required for heating function |
| Protection: | Over/undervoltage, overcharge, over-temp, short circuit, etc. |
| Lifespan: | Approx. 15 years under normal use |
Which chargers/solar panels are compatible with the battery
Ultimatron’s BMS supports virtually all battery chargers and solar panels and works directly with the motorhome/caravan charger. It supports all external chargers that provide a steady current during charging. With so-called smart chargers that pulse the current to recondition lead cells/maintenance charge, the BMS will shut off charging. However, many smart chargers can be set to a non-pulsating charging mode. For those charging via solar panels, the battery supports up to 100A.
