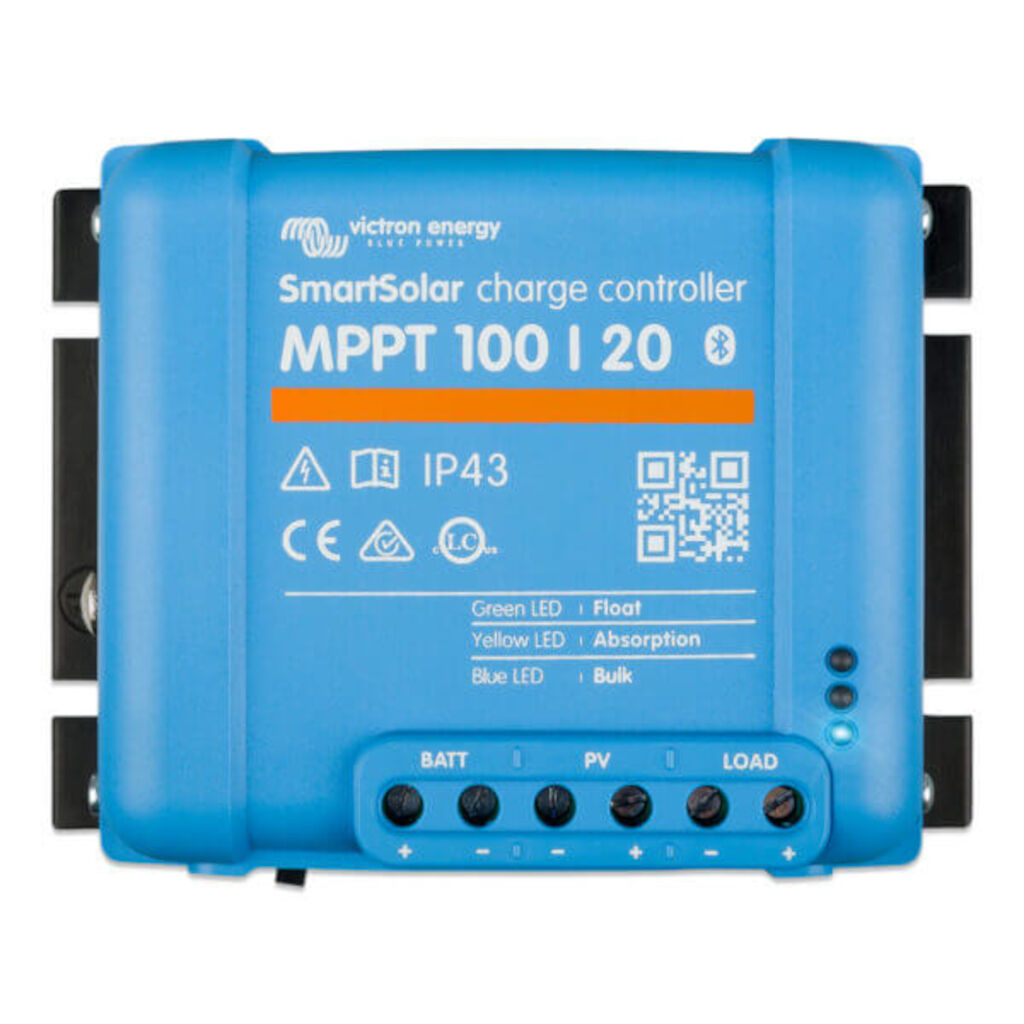

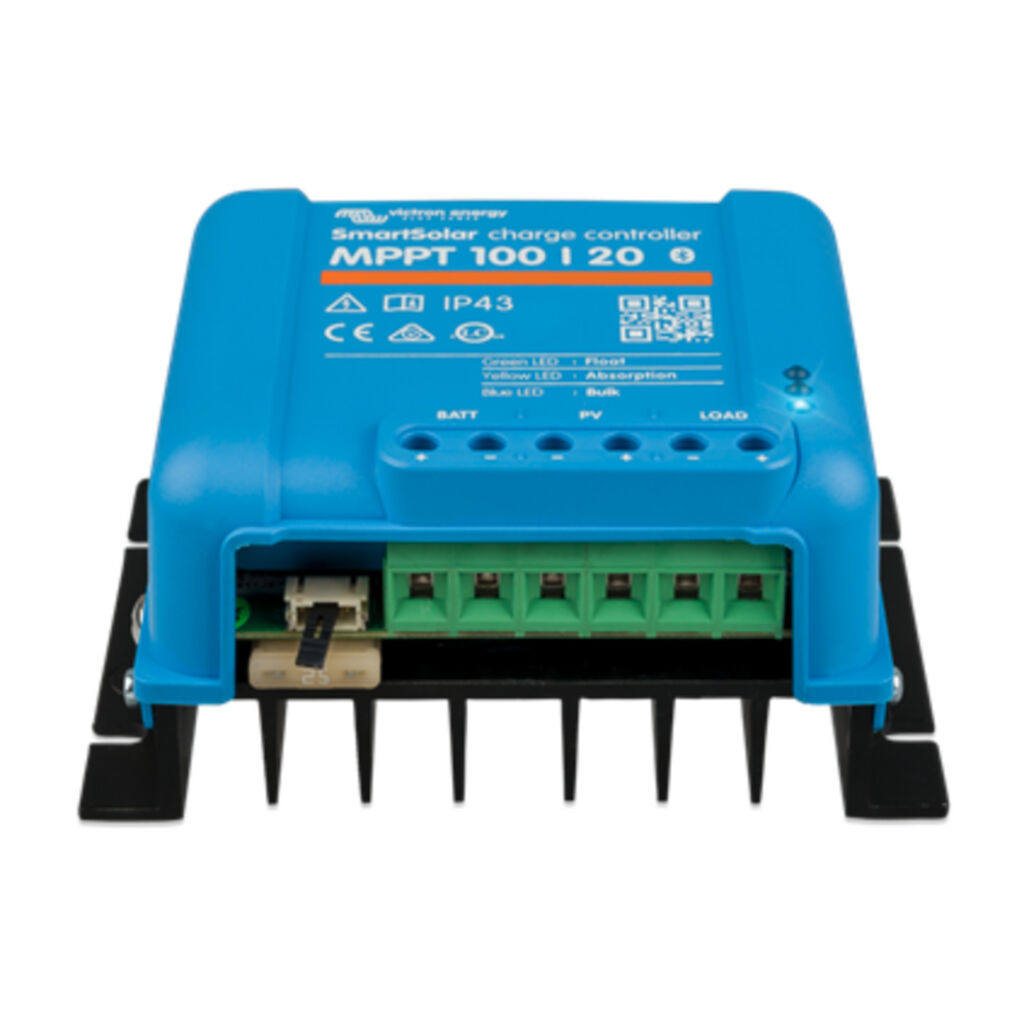

Victron Solar Controller SmartSolar MPPT 100/20

Max Solar Panel Power: 290W (12V) / 580W (24V)
Battery Types: Lithium, AGM, and Lead-Acid Batteries
Max Voltage (Voc): 100V
Max Charging Current: 20A
Automatic 12/24V Detection: Yes
Size: 100 x 131 x 60 mm
Weight: 0.65 kg



Victron Smart Solar 100/20

The Victron SmartSolar MPPT 100/20 is a powerful and reliable solar charge controller that efficiently manages charging for both 12V and 24V battery systems, including lithium, AGM, and other lead-acid batteries. It automatically switches between voltage levels and delivers a maximum charging current of 20A. The controller supports solar panels up to 290W for 12V systems and 580W for 24V systems, with a maximum open-circuit voltage of 100V.

Thanks to the built-in ultra-fast MPPT (Maximum Power Point Tracking) technology, energy yield is maximized even under changing light conditions. Additionally, the model supports advanced Max Power Point Detection, making it extra efficient under partial shading where multiple power points may occur.

With integrated Bluetooth, the controller can be easily monitored and configured via the VictronConnect app, allowing you to adjust settings wirelessly. The SmartSolar 100/20 is designed for long-lasting and safe operation with protection against overheating, reverse polarity, and short circuits. It operates in harsh environments with temperatures down to -30 °C.

• Automatic Voltage Detection – Automatically switches between 12V and 24V.
• MPPT Technology – Maximizes energy utilization even in varying light conditions.
• Bluetooth Monitoring – Easy remote control via the VictronConnect app.
• High Compatibility – Supports lithium and AGM batteries.
• Protection Features – Safe against overheating, polarity errors, and short circuits.
