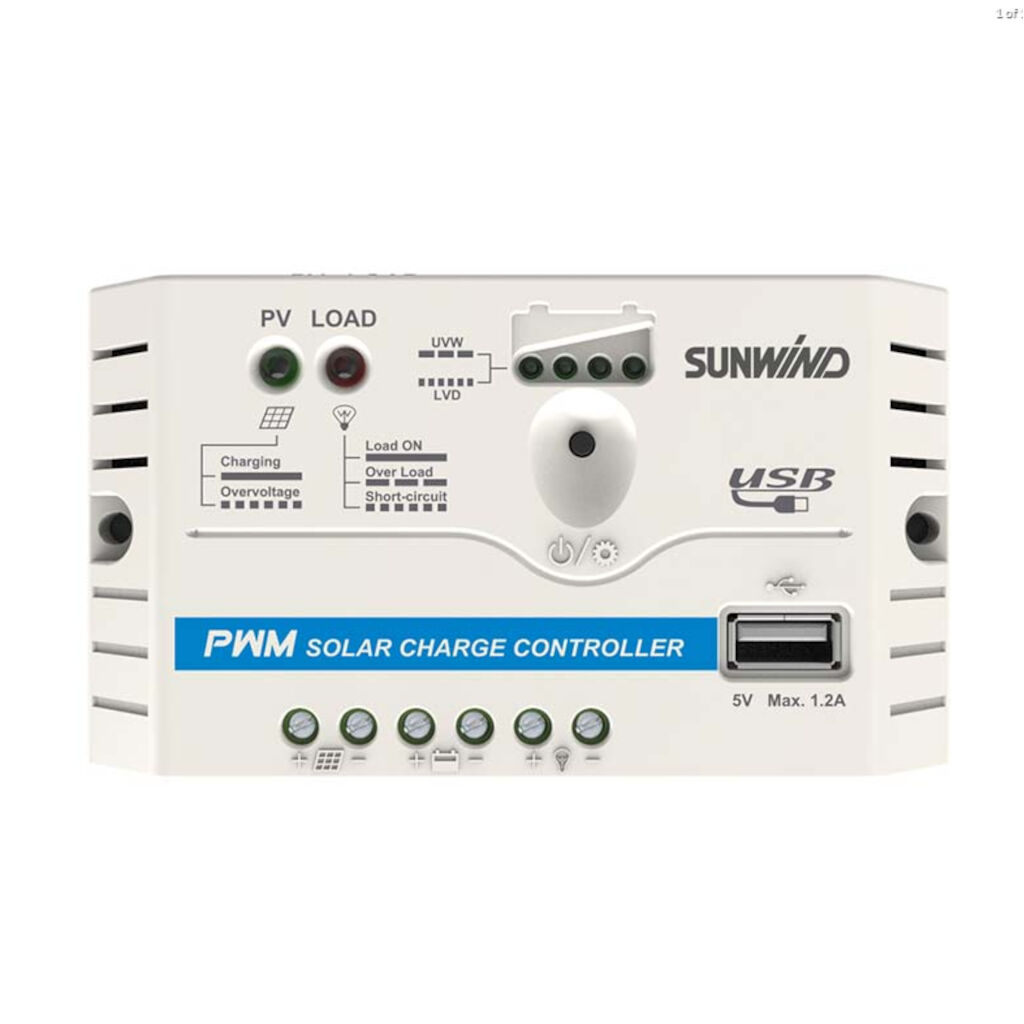

Sunwind Solar charge controller 20A 12/24V
Item ID: SW540179
Traditional PWM regulator with load output and USB port. Handles up to 20A charging current and has built-in protection against overcharging, short circuit, undervoltage, and reverse polarity.
READ MOREMax power output solar panel: 240/480W (12V/24V)
Battery types: AGM, Lead/Acid & Gel
Max voltage: 50V
Max charging current: 20A
Size: approx. 15 x 8.5 x 4 cm
Weight: 0.18 kg
Traditional Solar Charge Controller
Affordable solar charge controller with a max charging current of 20A, load output, and USB port. LED indicators display battery status and battery type selection. Electronic protection against overcharging, short circuit, deep discharge, and reverse polarity. Perfect for those with smaller needs who want an affordable solution.
| Brand | Sunwind |
| Size | 14,8 x 8,56 x 3,8 cm |
| Weight | 0,18 kg |
| Battery | Suitable for: AGM (Closed lead battery), Gel battery, Open acid filled battery (Flooded) |
| Max Load kg | Charging current: 20A Voltage: 50V |
