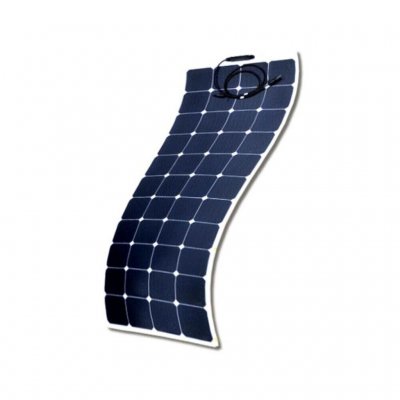

A flexible 165W solar panel from LTC. Long lifespan and 30% higher efficiency compared to conventional solar panels.
READ MOREWeight: 2.9 kg
Size: 1460 x 540 x 3 mm
Max power charge current: 6.04 amps
A flexible 165W solar panel from LTC. 30% higher efficiency compared to conventional solar panels. The solar panel has a power warranty of 90% for the first 10 years and thereafter at least 80% for 25 years.
LTC's flexible solar panels use Ethylene Tetrafluoroethylene (ETFE) to better absorb sunlight with less reflection. ETFE is a durable and UV-friendly material that is self-cleaning and maintains its transparency over its lifecycle. The material is environmentally friendly and 100% recyclable. Even the production process itself is more eco-friendly as it does not require chemical solvents or other petroleum products in its manufacturing.
The panel is directly glued to the roof.
Specification:
Rated Maximum Power (Pmax) | 165W |
Tolerance | ±3% |
Voltage at Pmax (Vmp) | 27.3V |
Current at Pmax (Imp) | 6.04A |
Open-Circuit Voltage (Voc) | 32.2V |
Short-Circuit Current (Isc) | 6.4A |
Nominal Operator Cell Temp (NOCT) | 50C |
Maximum System Voltage | 200VDC |
Maximum Series Fuse Rating | 15A |
Operating Temperature | -40C to +86C |
Application Class | A |
Size | 1460 x 540 x 3 mm |
Weight | 2.9kg (panel only) |
Mounting rail and cable entry not included | NO |
Cable Length | 1 x 2 M |
Brand | LTC |
Size | 1460 x 540 x 3 mm |
Effect | Charging current max power: 6.04 amp |
Weight | 2,9 kg |
Type | ETFE |
