LTC Solar Controller MPPT 15AMP Display - Outlet
Regulator for solar panels up to 190 watts. For wall mounting.
Note! Customer return, tested but not used.
READ MOREMaximum power solar panel: 190W
Battery types: AGM, Lead, Gel
Max voltage: 75V
Maximum charging current: 15A
Automatic detection 12 / 24V: Yes
Size: 165 x 123 x 46 mm
Weight: 470 g

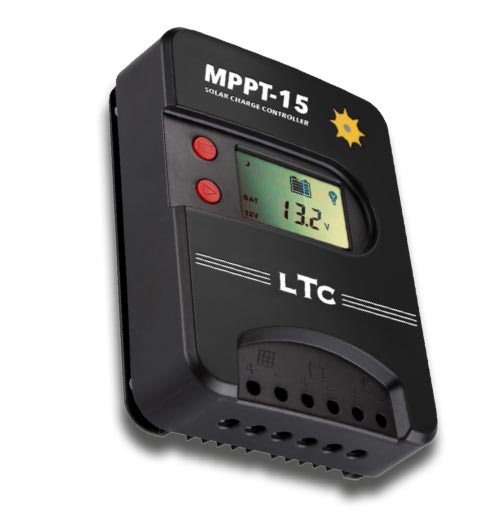

MPPT Regulator with display
The controller comes with a display which i.a. shows charge, load, battery voltage and voltage from the solar cell. It is a controller with MPPT (Maximum Power Point Tracking). MPPT means that the controller uses microprocessors to optimize charging, which can provide up to 30% more efficient charging compared to standard controllers.
The controller continuously compares the voltage of the battery with the voltage of the solar cells and calculates and optimizes the voltage to the battery to get as efficient a charge as possible.
Manual for the product:
Download / Read here
| Brand | LTC |
| Size | 165 x 123 x 46 mm |
| Weight | 560 g |
| Battery | Suited for: AGM, Bly och GE |
| Max Load kg | Charging current: 15 amp Voltage: 75V |
