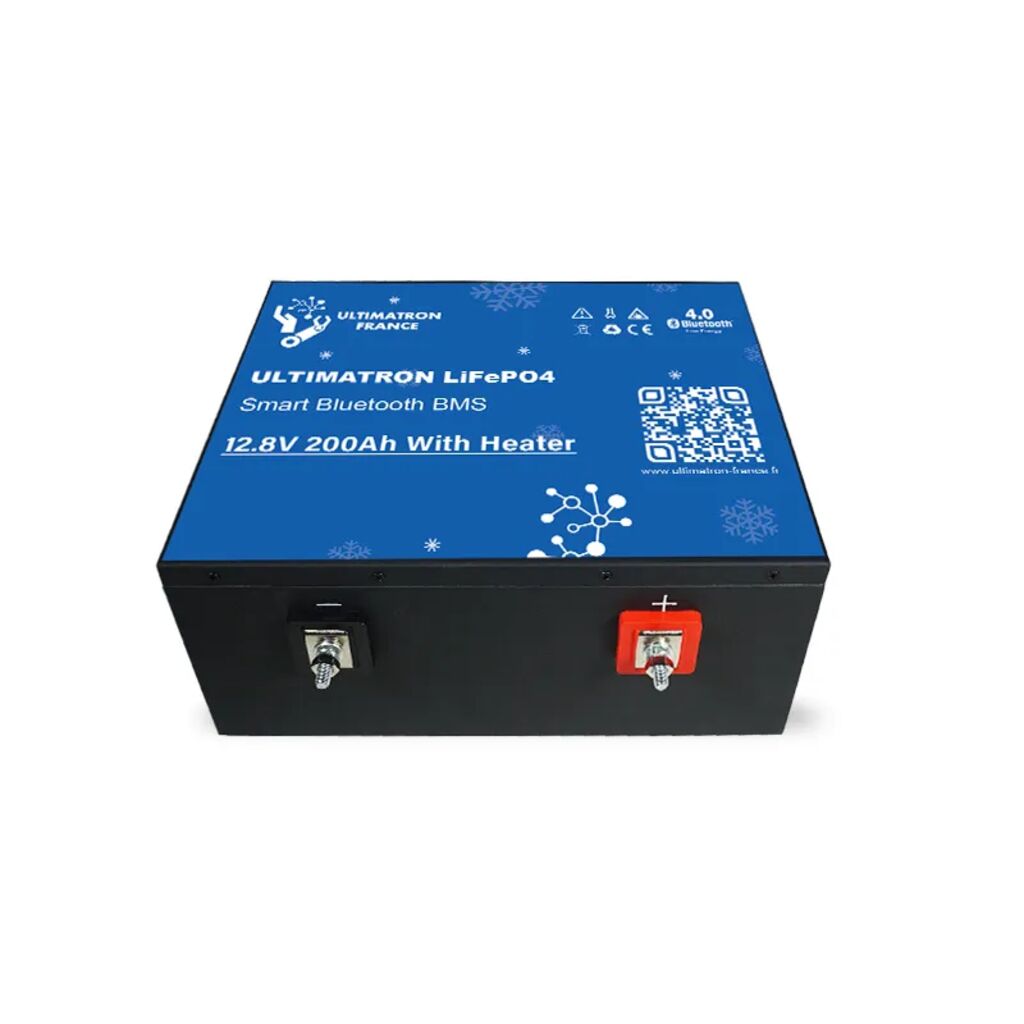

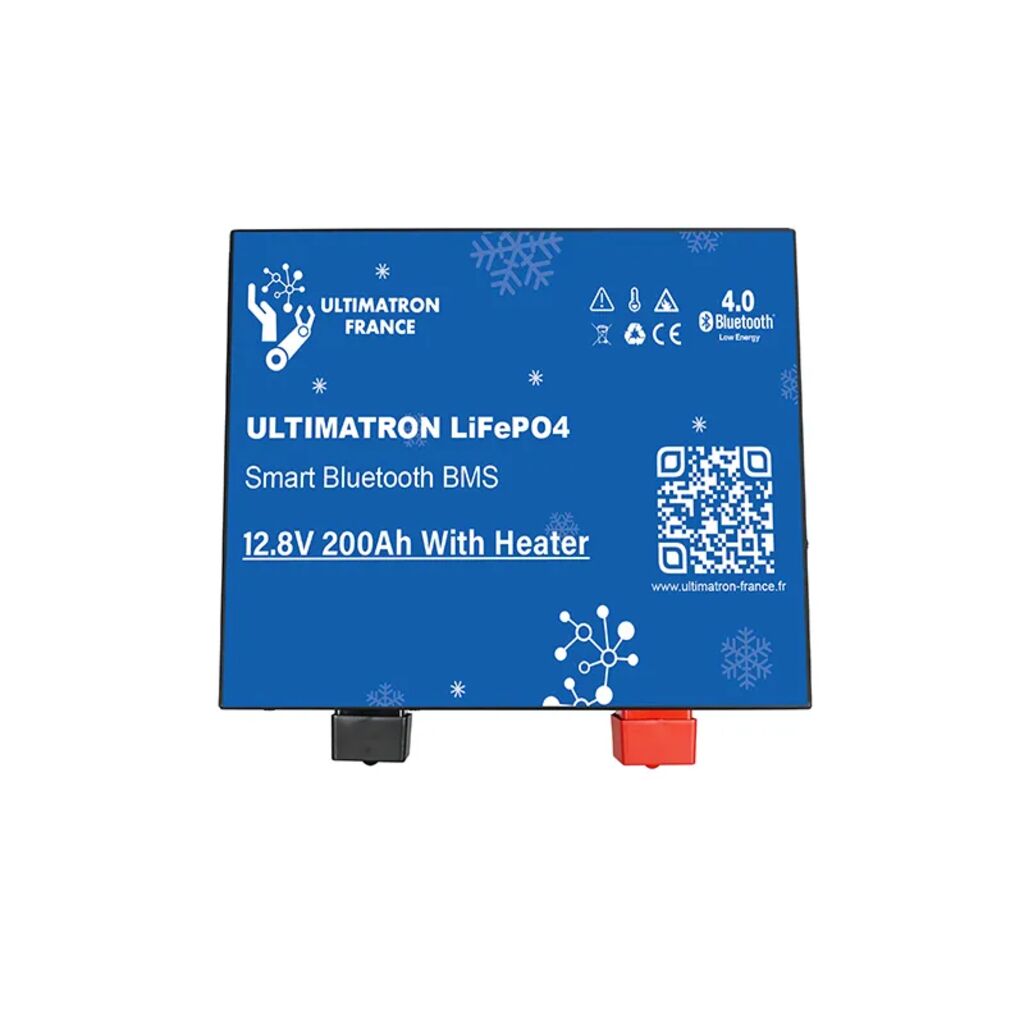

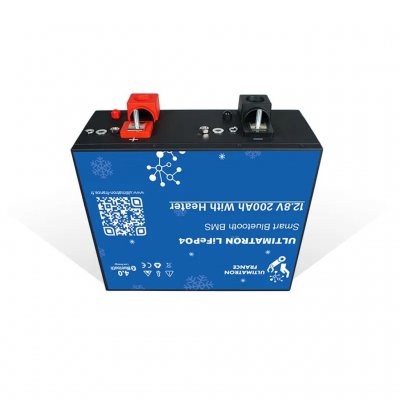

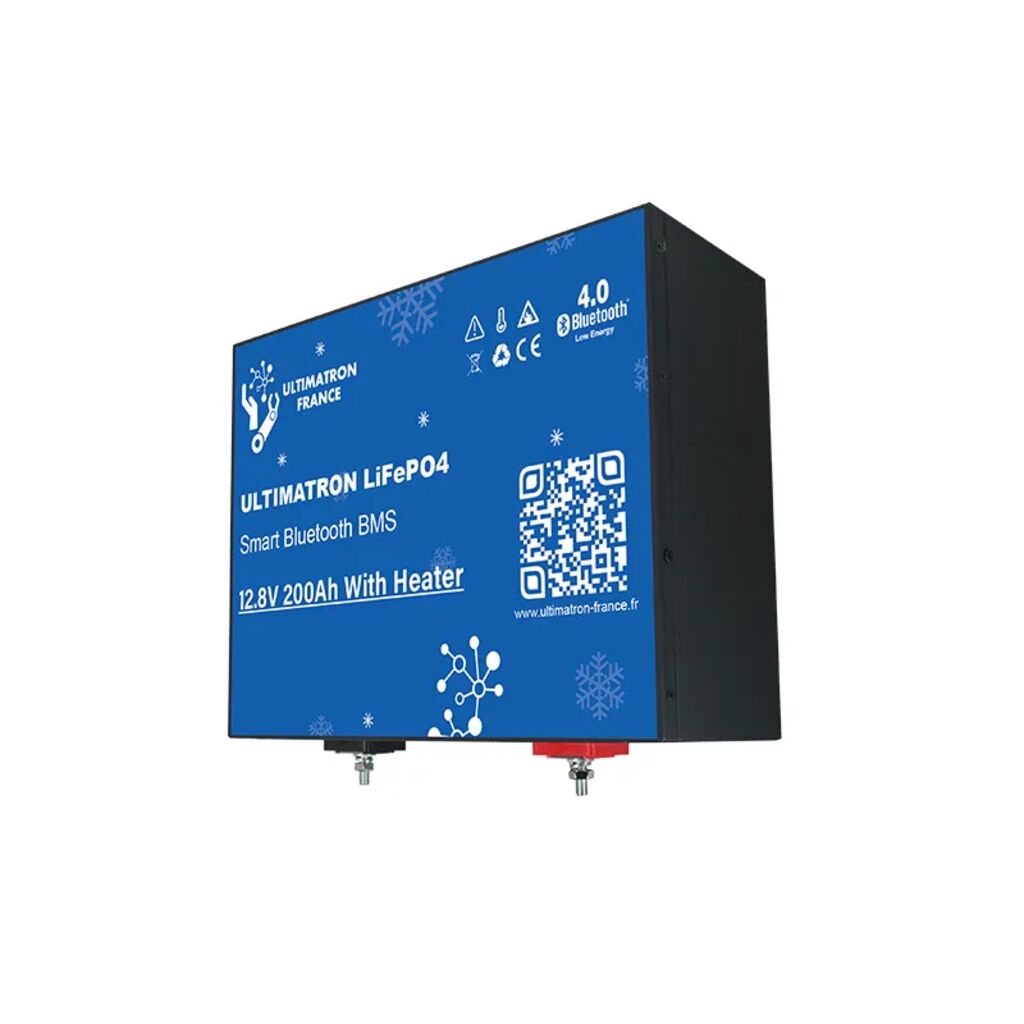

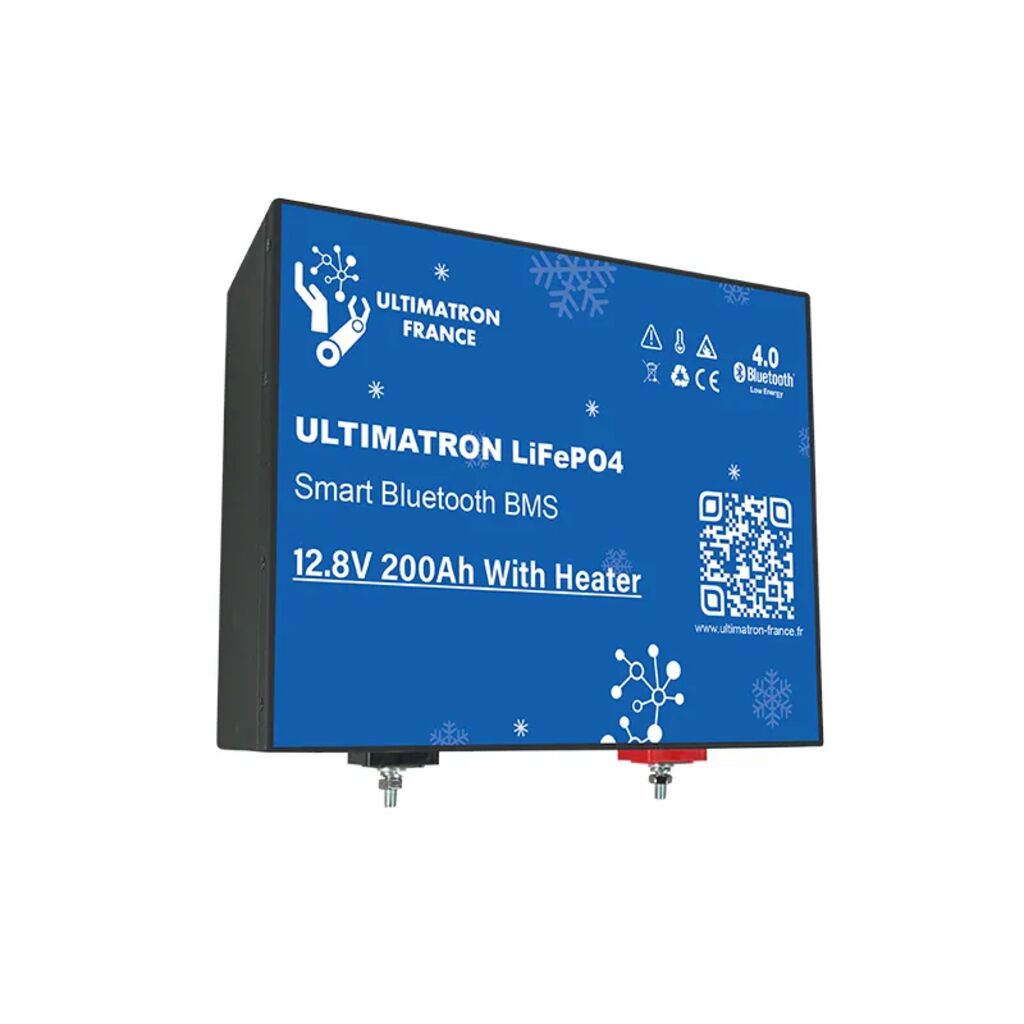

Ultimatron Heat 200Ah 12V battery for Motorhomes
Lithium battery with integrated heating system specially designed for installation under the seat of Fiat Ducato, Citroën, Peugeot etc. The heating system allows charging even in winter. The Ultimatron Heat 200Ah has a BMS (Battery Management System) that ensures and protects the battery from incorrect charging, high temperatures, and overload. Thanks to its BMS, you can replace your lead-acid battery (not starter batteries) directly without making any adjustments to the electrical system. The battery can also be connected in parallel to increase capacity.
READ MORECapacity: 200 Ah (2560 Wh)
Output capacity: 12V/150 A (approx. 1900W)
Nominal voltage: 12.8V
Weight: 23.3 kg
Lifespan: approx. 15 years (6000 cycles to 80%)

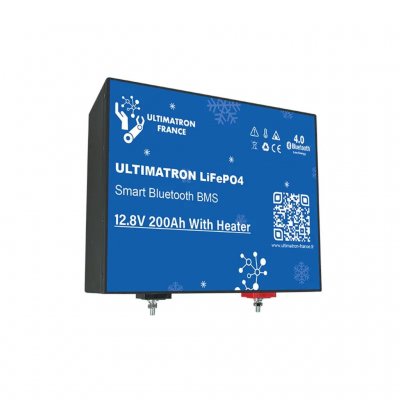

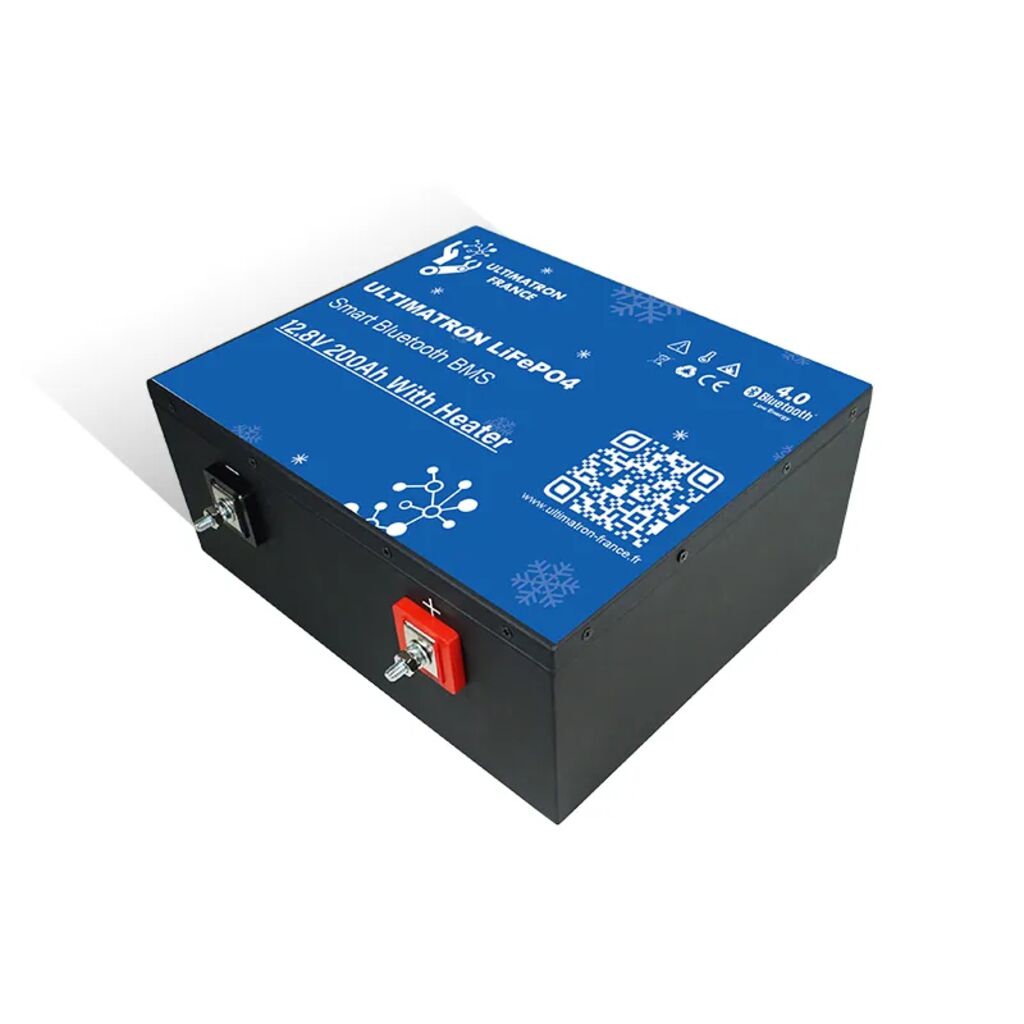

200Ah Lithium Battery for Under-Seat Installation
High-capacity battery with low weight, compact size, and significantly longer lifespan compared to traditional motorhome batteries. A unique feature of this LiFePO4 battery from Ultimatron is the built-in heating system, which warms the battery before charging when needed. Perfect for those who use their motorhome during the colder seasons. Lithium batteries also charge much faster and can utilize nearly the entire capacity, unlike traditional batteries which typically use about 50%. This makes it equivalent to about 300 Ah in traditional batteries—at a much lower weight and smaller size.
The battery includes a built-in BMS (Battery Management System) for maximum safety and longevity. Thanks to the internal electronics, it can be charged using a standard constant-voltage charger, solar regulator, etc.

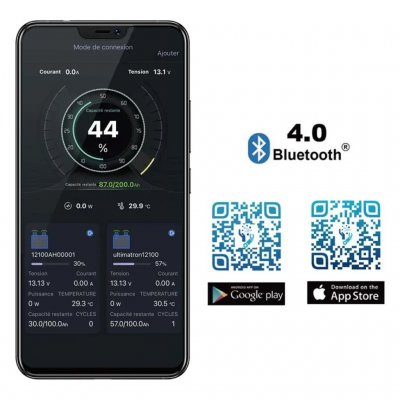

Bluetooth
The BMS also includes a Bluetooth connection, allowing you to check battery status on your phone. You can monitor:
- Charge status
- Voltage
- Available capacity
- Number of charge cycles
- Temperature and battery health
Ultimatron Heat 200Ah Lithium Battery for Motorhomes
- Drop-in replacement – no external components needed
- 5-year warranty
- Built-in heating system for charging even in sub-zero temperatures
- Bluetooth connection – connect via app to monitor battery status
- Designed to replace traditional batteries (same voltage and terminal layout)
- Long lifespan – 15 years under normal use (5–10 times longer than lead-acid batteries)
- Lightweight (saves approx. 50 kg)
- High capacity – effective performance equivalent to a 300 Ah lead-acid battery
- High performance even under extreme conditions
- Environmentally friendly
- Built-in protection via BMS (Battery Management System)
- Automatic cell balancing extends battery life (a key difference from inferior lithium batteries)
- Can be connected in series and parallel
- 3–10x faster charging
- Tailored size to fit under the seat of Fiat Ducato, Citroën & Peugeot motorhomes
Specification Ultimatron 200A Lithium Battery
| Nominal Voltage: | 12.8V |
| Nominal Capacity: | 200 Ah / 2560 Wh |

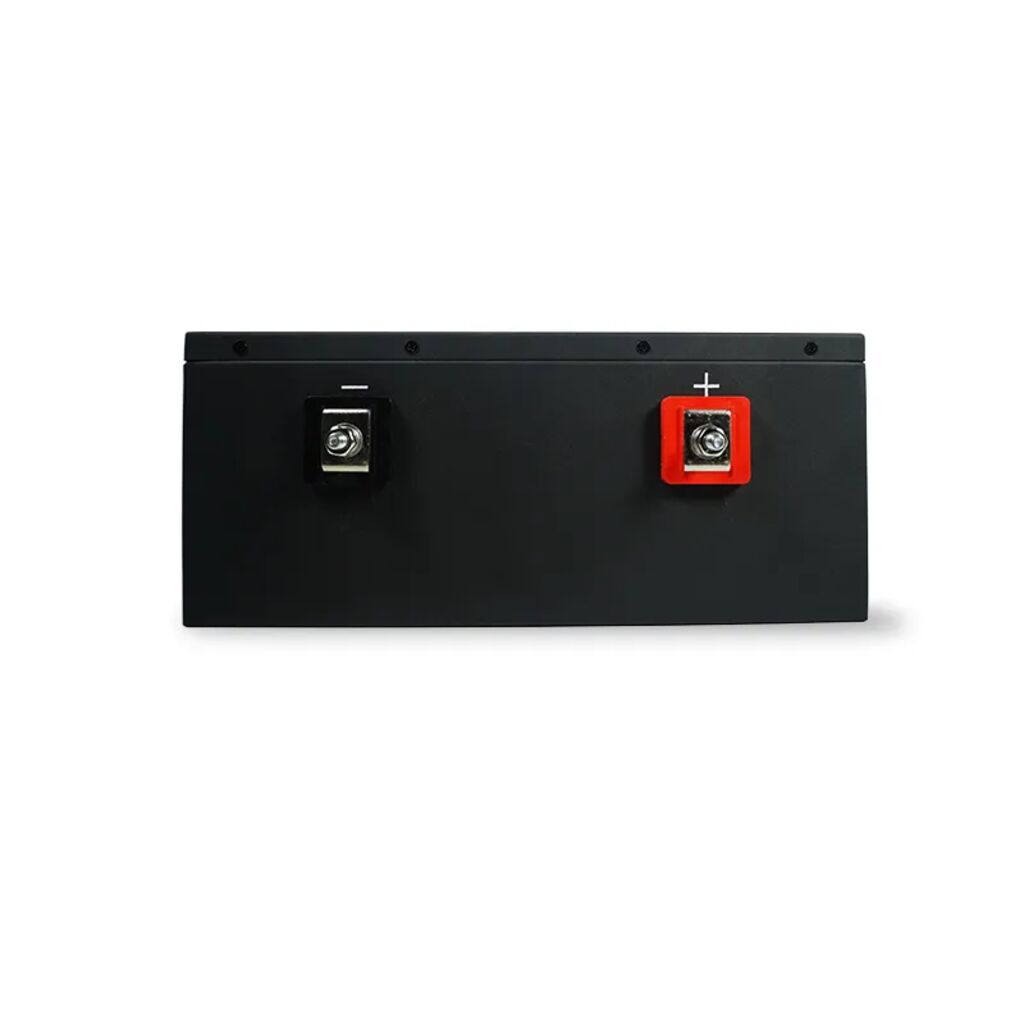

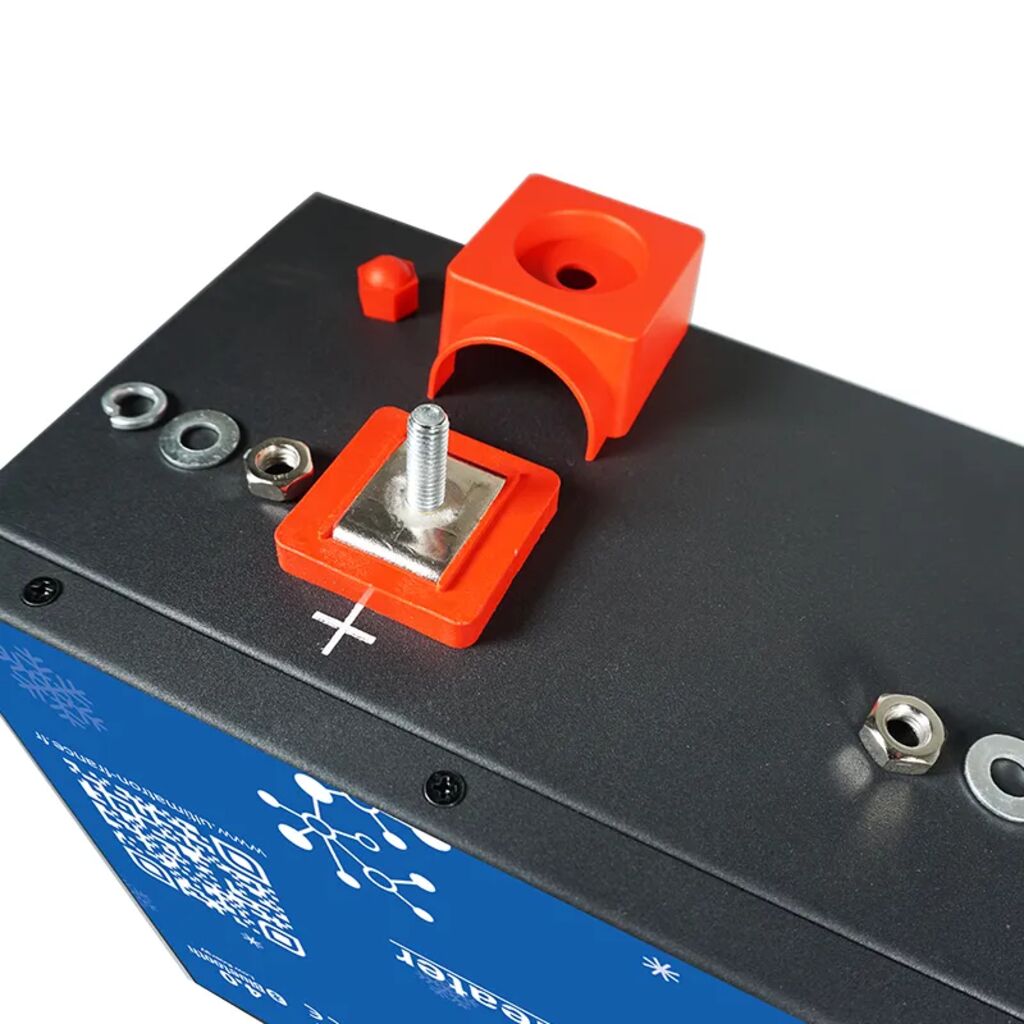

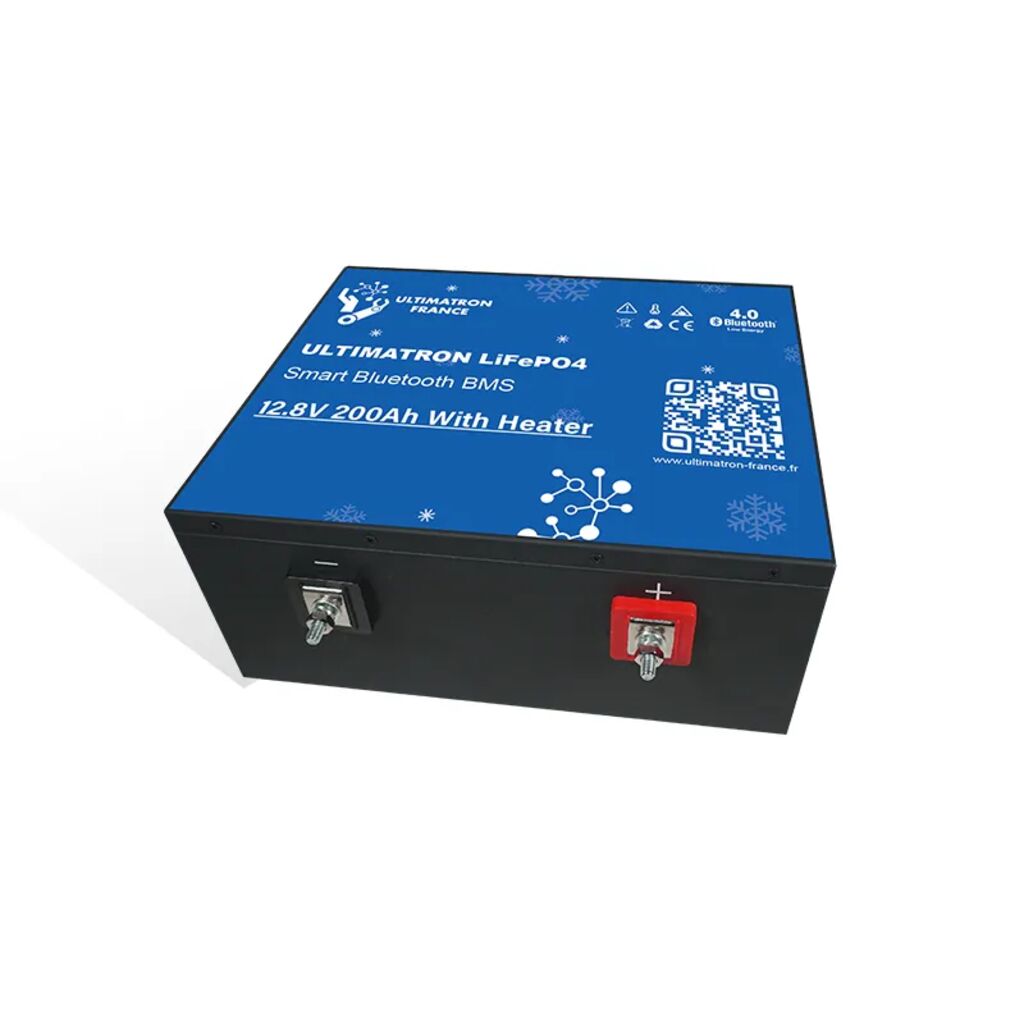

| Connection: | M8 |
| Output Capacity: | 12V / 200Ah |
| Battery Type: | Lithium Iron Phosphate (LiFePo4) |
| Weight: | 23.3 kg |
| Dimensions (W×D×H): | 35.7 × 31.6 × 15.2 cm |
| Battery Management System (BMS): | Integrated |
| Number of cycles (80% DoD): | >6000 |
| Warranty: | 2-year full warranty or up to 2000 cycles / 5-year limited warranty (up to 2200 cycles) |
| Operating temperature: | -20℃ to 55℃ @60±25% relative humidity (Charging from -35℃) |
| IP Rating: | IP62 |
| Max discharge current: | 150A (spikes: 450A for 200–500 milliseconds) |
| Recommended charger: | 60A (Max 100A) |
| Recommended charging: | 14.6V ± 0.1V (80A, Max 150A) |
| Charger type: | Traditional or lithium-compatible |
| Charging time: | Depends on charger size |
| Self-discharge per month: | Approx. 3% |
| Heating function: | Can charge down to -35°C, min. 7A required for heating |
| Protection: | Over/under voltage, overcharge, over-temp, short circuit, etc. |
| Lifespan: | Approx. 15 years under normal use |
Compatible chargers / solar panels
The BMS in Ultimatron supports virtually all chargers and solar regulators and connects directly to the camper's built-in charger. It works with any charger that delivers a stable current. With so-called smart chargers that pulse for reconditioning lead batteries, the BMS will shut off charging. Many smart chargers can be set to non-pulsing mode. For solar, the battery supports up to 80A.
