Dometic Rally AIR Tour 330 M Awning

Width: 330 cm
Connection height: 265 - 295 cm
Rail width: 330 cm
Depth: 250 cm
Weight: 26.5 kg



Maximize comfort in all weather

Dometic Rally AIR Tour 330 M is a bright and spacious awning with air channels, designed for caravans and motorhomes with an awning height of up to 295 cm. The awning is extremely easy to set up and pitch, and thanks to dual keder rails it can be mounted on a motorhome. Simply attach the awning fabric to the rail on the motorhome awning, secure four pegs in the corners, and inflate the integrated air channels from a single valve. Then fasten the seal against the vehicle and the awning is ready to use. Large windows around the awning and in the roof provide excellent light and a great view, and it features an extra window on each side compared to Rally. The front panels can be rolled to the side to open up the awning on warm days.

Dope-dyed ripstop polyester offers improved UV protection and long lifespan. Together with the new roof angle and Air Frame system, the awning is very stable and can withstand harsh weather conditions. The breathable fabric also creates a more comfortable indoor climate when exposed to sunlight.


Dometic Rally AIR Tour 330 M Awning

• Easy setup with inflatable air channels instead of poles
• Dual keder rails and adjustable height – fits both motorhomes and extra high caravans
• Angled front air channels provide good headroom throughout the awning
• 250 cm depth
• Large windows
• Front panels can be rolled aside and side panels can be opened – perfect for warm days
• Two side doors
• Mosquito nets on both doors

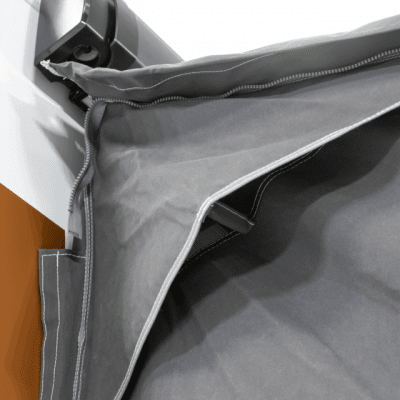

• Roof ventilation

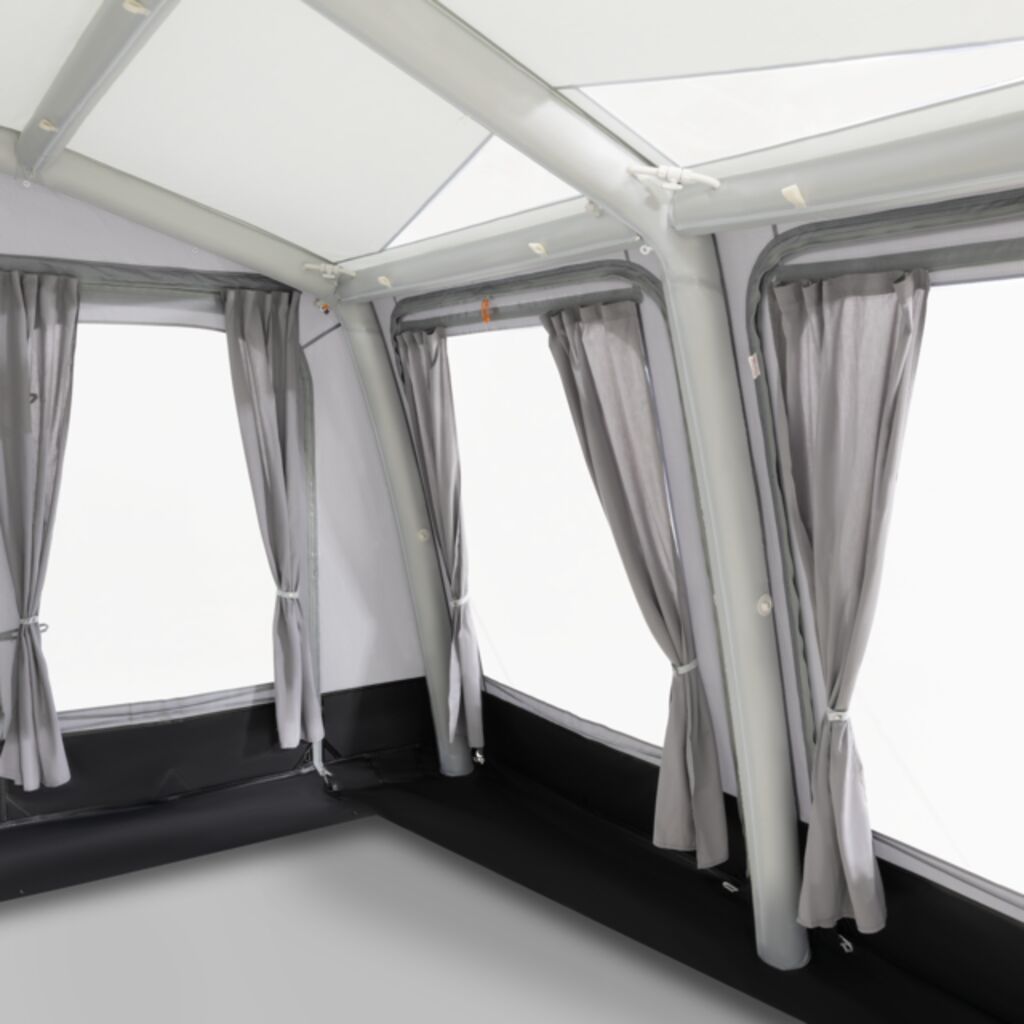

• Curtains in the windows (removable)
• Very durable fabric (heat-taped seams, flame retardant and UV-stabilised)
• Dope-dyed ripstop polyester for improved UV protection and long lifespan
• Isolation valves in all air channels (protects the awning if one tube deflates)
• Pump with pressure gauge, pegs and carry bag included

About Dometic Rally AIR Tour 330 M

Dometic Rally Air Tour is an awning designed for those looking for a quick-pitch and spacious awning with very high comfort. Thanks to the 300 cm depth and the pre-shaped air channels that provide excellent headroom throughout the awning, there is plenty of space for furniture without feeling cramped. Doors on both sides provide flexibility when furnishing while keeping the caravan or motorhome easily accessible. Both the front and side panels can be opened to increase airflow. Both doors have mosquito nets, providing excellent ventilation without letting insects in. A draught skirt is also included to prevent wind and insects from entering underneath the vehicle.


Setup

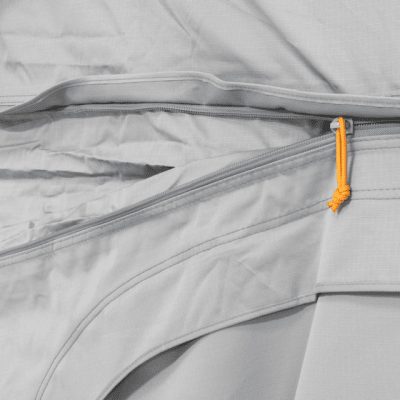

Dometic Rally Air Tour has two keder rails (5 and 7 mm), making it suitable for both caravans and motorhomes. The Dometic Multi Height System also makes it easy to adjust the height by opening a zipper at the top of the awning side.

Caravan: Requires a straight rail section of 330 cm. If part of the awning ends up over a window or hatch, it can be sealed using poles or limpets (not included).
Motorhome: The cassette awning rail must be 390 cm for the awning to fit. Measure the height from the underside of the awning down to the ground—preferably both front and rear. The height must not exceed 295 cm on either side.


Awning fabric - Dometic Weathershield™Tour

Dope-dyed ripstop polyester provides improved UV resistance and longer durability



Questions and answers – Dometic Air Frame

1. How durable are the air channels?
The channels consist of three layers: an outer layer of awning fabric, a protective PVC layer, and the inner TPU air tube. This construction makes them more resistant to wind than steel and fiberglass poles. Always use a pump with a pressure gauge and do not exceed the recommended pressure.

2. What happens if a tube gets punctured or a valve breaks? Will the awning collapse?
The air channels are separated with valves, so the awning will not collapse if one tube is damaged. They can often be repaired with airtight tape, and both tubes and valves are fully replaceable.
