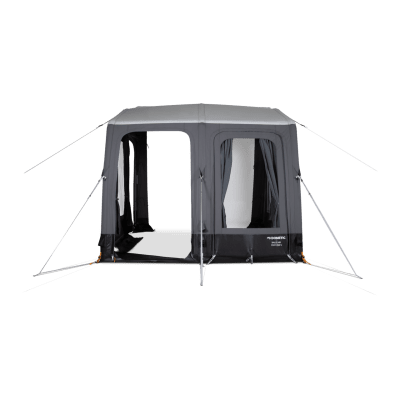

Dometic Rally Air Stay 330 S Awning Awning Awning

Width: 330 cm
Caravan connection height: 235 - 265 cm
Rail width: 330 cm
Depth: 250 cm
Weight: 35 kg



Lightweight and quick-pitching awning for caravans

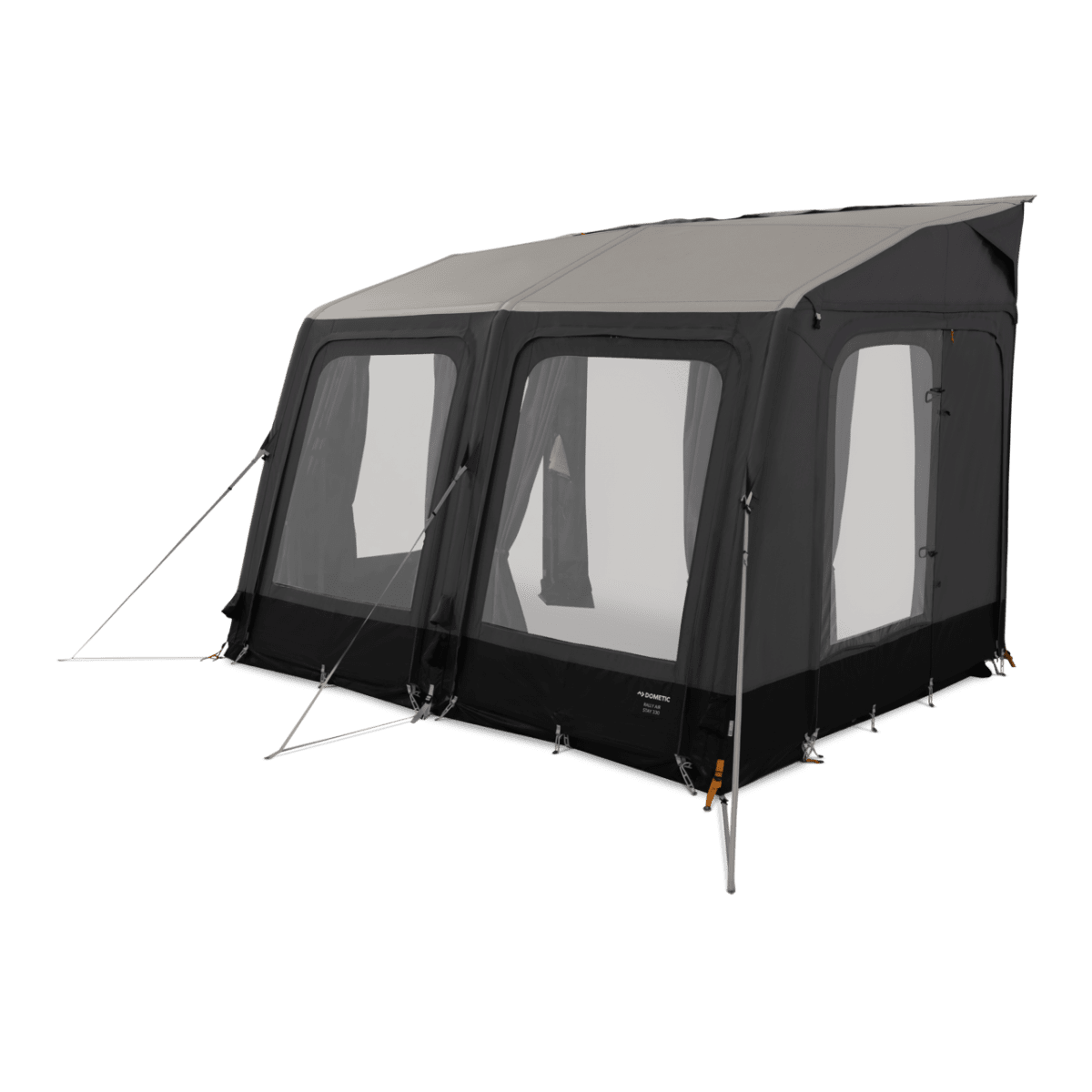

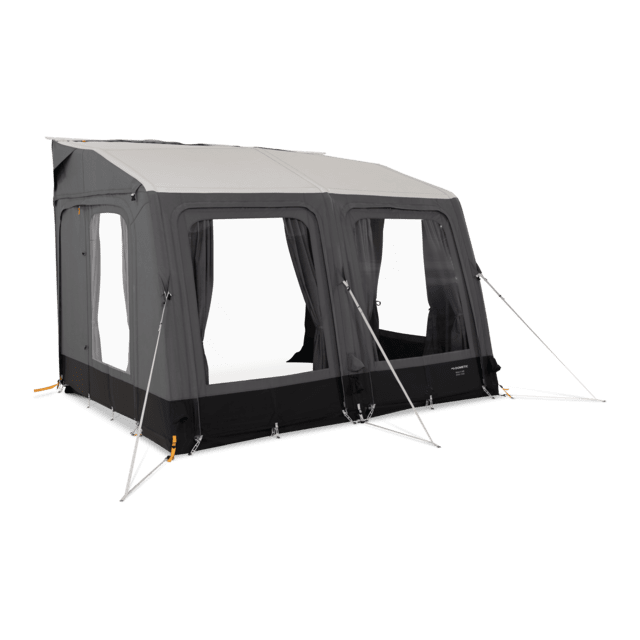

Dometic Rally Air Stay 330 S is an easy-to-pitch and flexible inflatable awning for caravans and motorhomes. The awning is extremely easy to install and pitch and, thanks to its dual keder beading, can be fitted to both caravans and low motorhomes. Simply attach the awning fabric to the rail on the caravan awning, secure four pegs in the corners and inflate the integrated air channels that form the frame from a single valve on the awning. Then secure the seal against the caravan and the awning is ready to use. Large window panels around the awning and in the roof provide plenty of light and an excellent view. Both the front and side panels can be opened up on warm days. Rally AIR for caravans has now been updated with Weathershield™ Stay material. This awning features a ripstop fabric, strong UV resistance and our combination of breathable polycotton walls and an ultra-durable polypropylene roof.

Dometic Rally Air Stay 330 S Awning

• Easy pitching with air channels inflated from a single valve instead of tent poles
• Dual keder beading and adjustable height - suitable for both caravans and low motorhomes
• Angled front air channels provide good headroom throughout the awning
• 250 cm deep

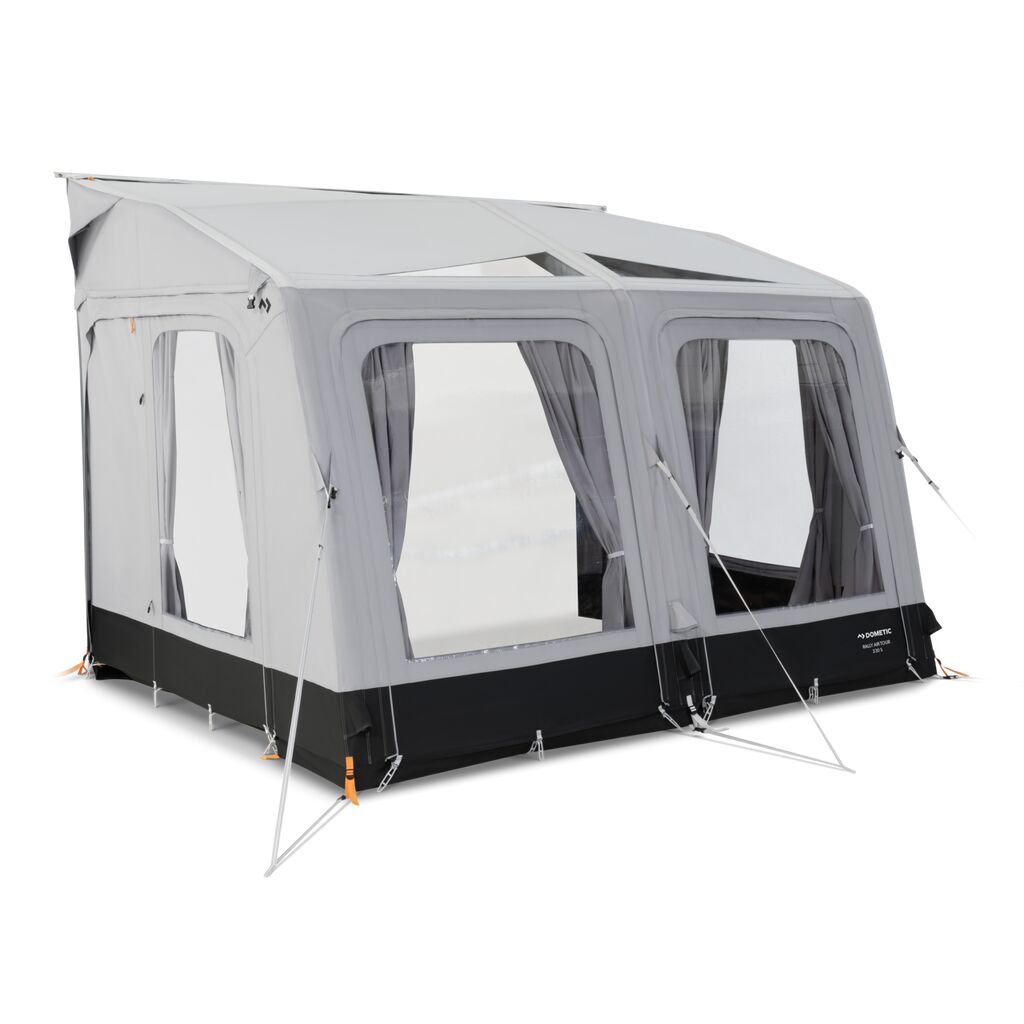

• Large windows and roof windows provide excellent views during the day and a starry sky at night

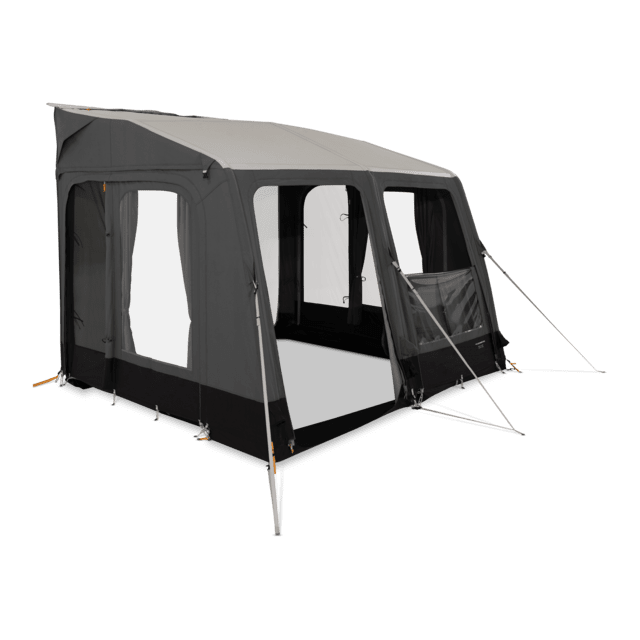

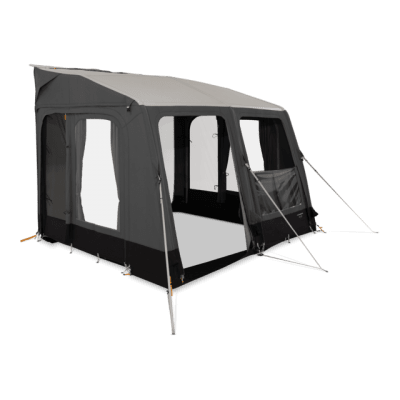

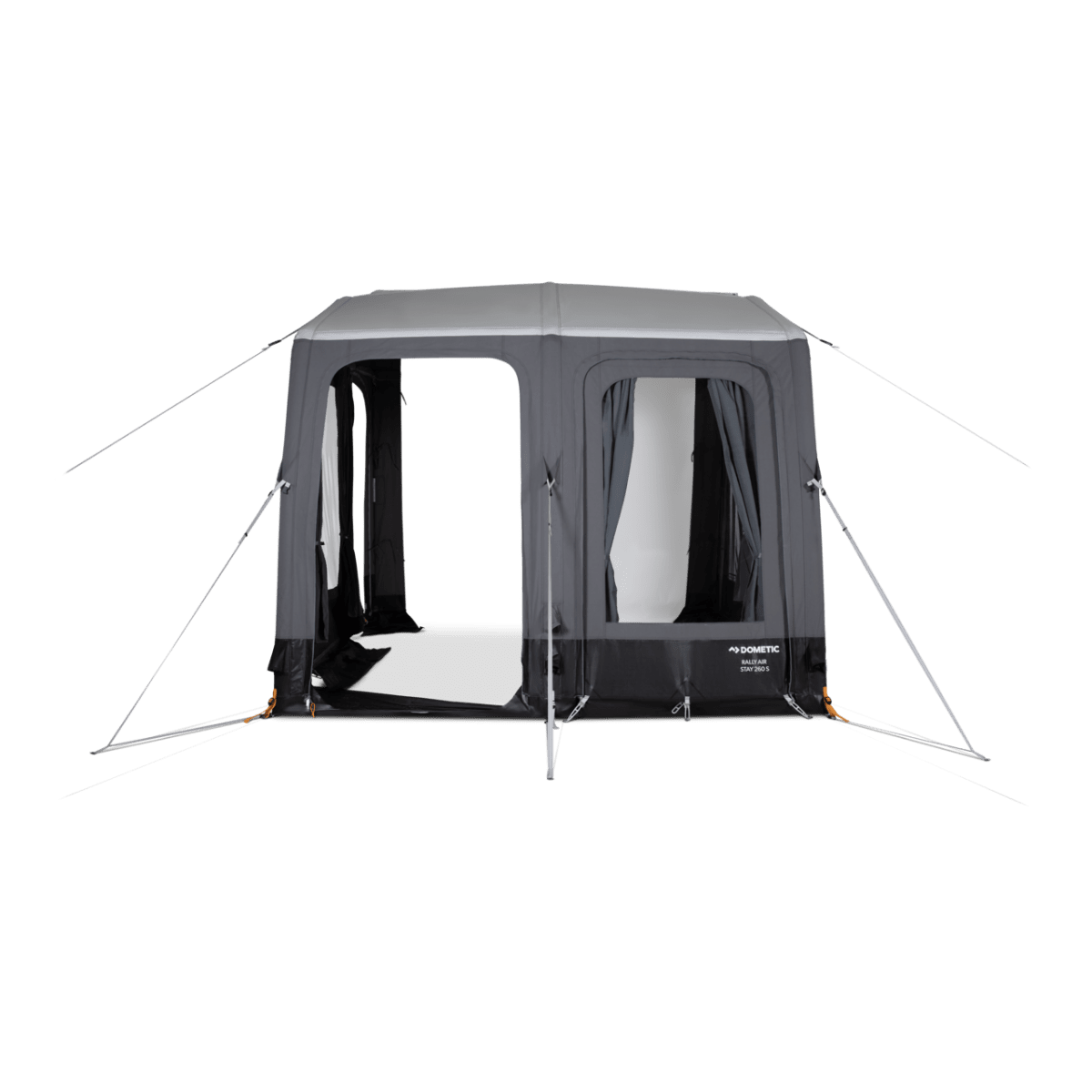

• The front panels can be rolled to the side and the side panels can be opened up - perfect for warm days
• Two side doors
• Mosquito mesh panels for the side windows
• Roof ventilation

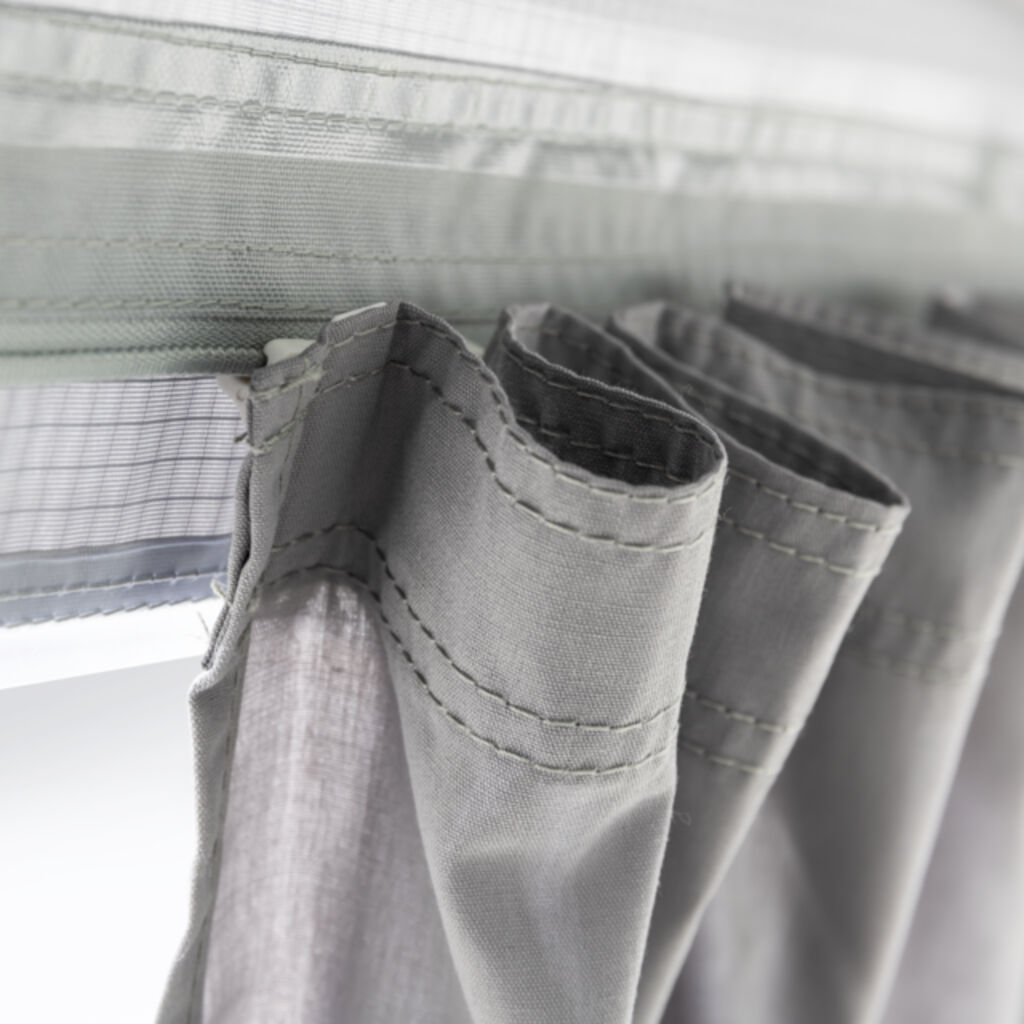

• Window curtains (removable)
• Very durable fabric (6000 mm hydrostatic head, hot-air taped seams, flame-retardant and UV-stabilised)
• Isolation valves in all air channels (protect the awning if one channel loses air)
• Pump with pressure gauge, pegs and awning bag included

About Dometic Rally Air Stay 330 S

Dometic Rally Air Stay 330 S is an awning designed for those looking for a practical, quick-pitching awning with a high level of comfort. Thanks to the curved air channels, which provide good headroom throughout the awning, there is plenty of space despite its more compact size. Doors on both sides give you greater freedom when arranging your furniture while keeping the caravan easily accessible regardless of your pitch at the campsite. If you want to open up the awning further, both the front and side sections can be opened. Both sides feature mosquito mesh panels, providing excellent ventilation without letting insects into the living area.

Installation

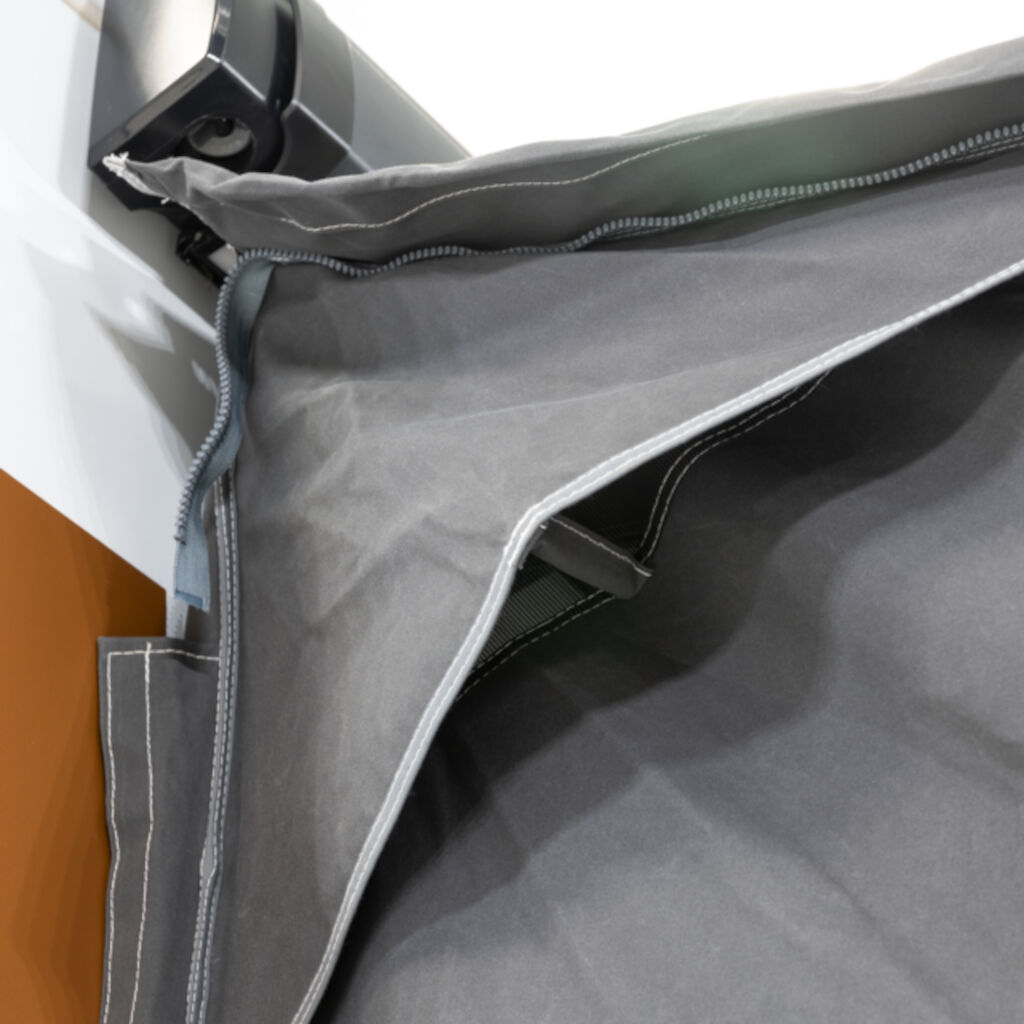

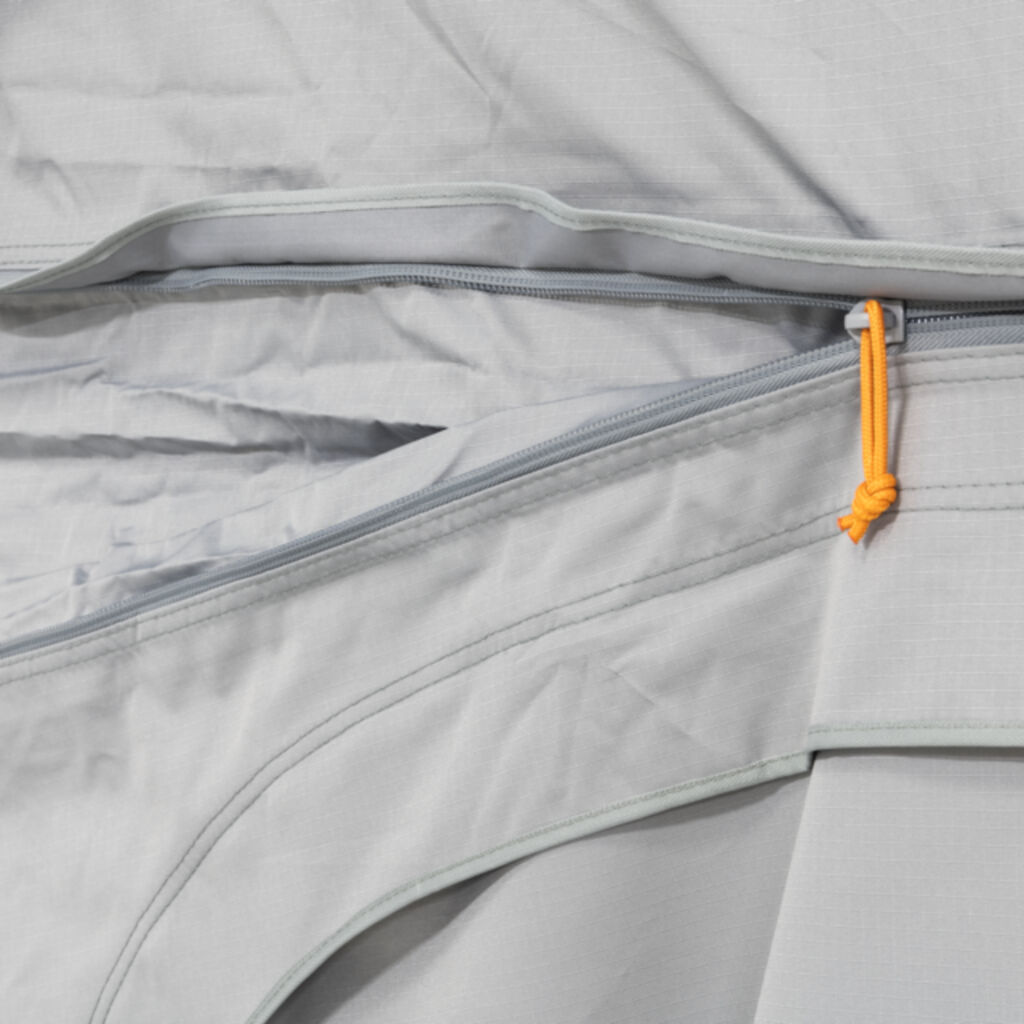

Dometic Rally Air Stay 330 S has two keder beads of 5 and 7 mm, making it suitable for both caravans and lower motorhomes. The Dometic Multi Height System also makes it easy to adjust the height by opening a zip at the top of the side of the awning.

Caravan: The caravan requires a straight section of rail measuring 390 cm. If one side of the awning is positioned over a window or hatch, it can be sealed using poles or Limpets (not included).
Motorhome: The rail in the cassette awning must measure 390 cm for the awning to fit. To measure the height, measure from the lower edge of the awning cassette down to the ground, preferably at both the front and rear of the cassette. It is important that the measurement does not exceed 265 cm on either side.

Awning fabric - Dometic Weathershield™ Tour

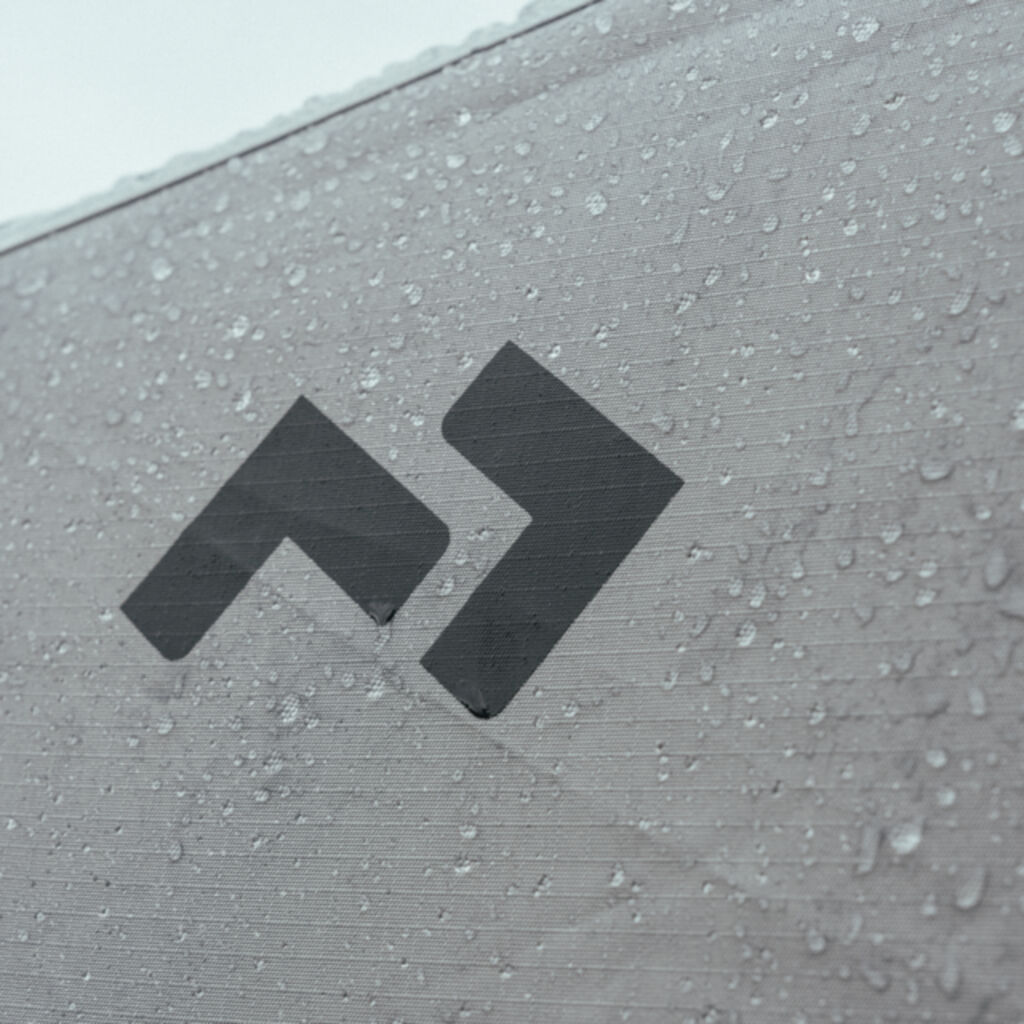

The awning fabric is made from a durable ripstop polyester fabric and is suitable for holiday use even in tougher climates. Thanks to a hydrostatic head of 6000 mm and hot-air taped seams, you don't have to worry about it coping with rain and bad weather. Dometic's new Dope dyeing process provides improved UV resistance and longer durability.



Questions and Answers - Dometic Air Channels

1. How durable are the air channels?
The channels consist of three layers. The outer layer is awning fabric, followed by a protective PVC layer and then the TPU air channel itself. This construction makes the channels more resistant to wind than steel and fibreglass poles. However, it is important to only use a pump with a pressure gauge and never inflate to a higher pressure than specified for the awning.

2. What happens if an air channel is punctured or a valve breaks? Will the awning collapse?
The air channels are separated by valves, so the awning will not collapse if one channel is punctured. They can often also be repaired using airtight tape. Both the air channels and valves are fully replaceable.
